TPHK(S)E Series Vertical Multistage Centrifugal Pump

Model No.	List Price
TPHK8T4-2SE	請聯絡各區經銷商

Model No.

List Price

TPHK8T4-2SE

請聯絡各區經銷商

Product Features

Product Features
Product Specifications
Performance Curve
Download Center

Application

The TPHK8T(S)E is vertical ultistage centrifugal pump, designed for industrial use, specially for machine tool. It is suitable to carry fluids such as water, coolant, light oil and other clean, non aggressive matters:

Industrial circulation system

Washing/cleaning system

Filtration system

Product feature

Immersible vertical multistage centrifugal pump,self-priming, co-axial pump/motor design,impellers mounted on extended motor shaft. Main working parts made by tainless steel.

Enclosure protection class：IP54

Insulation class：F.

Operating Condition

Ambient temperature：Max. +40℃

Liquid temperature：+0℃ ~ +90℃

Operating pressure：Max.10kg/cm²

Submerged depth：Min. 40mm

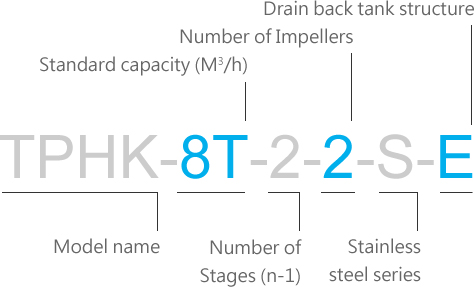

Model Code

TPHK 8T_(S)E

Compare Products (multiple options available)

Type
TPHK8T2-2(S)E
TPHK8T3-3(S)E
TPHK8T4-4(S)E
TPHK8T5-5(S)E
TPHK8T6-6(S)E

Type	Phase (Ø)	Voltage code	Cycle (Hz)	Volts (V)	Output Power (kW)	Ampere I 1/1 (A)	S.F.	Ampere I max (A)
TPHK8T2-2(S)E	3	A6V	5060	200-230 / 342-415220-255 / 380-480	1.11.1	5.2-5.4 / 3.1-3.44.6-4.6 / 2.8-3.1	1.11.11.4	5.5-5.7/ 3.3-3.56.2-5.7 / 3.6-3.5
TPHK8T3-3(S)E	3	A9V	5060	200-230 / 342-380220-240 / 380-440	2.22.2	9.5-10.5 / 5.5-5.68.6-8.4 / 4.9-5.0	1.11.5	10.2-10.9 / 5.9-5.912.1-11.2 / 6.9-6.4
TPHK8T4-4(S)E	3	A9V	5060	200-230 / 342-380220-240 / 380-440	2.22.2	9.5-10.5 / 5.5-5.68.6-8.4 / 4.9-5.0	2.21.5	10.2-10.9 / 5.9-5.912.1-11.2 / 6.9-6.4
TPHK8T5-5(S)E	3	A9V	5060	200-230 / 342-380220-240 / 380-440	3.03.0	12.2-13.1 / 7.1-7.111.2-10.7 / 6.4-6.3	1.11.3	13.4-14.0 / 7.9-7.814.5-13.3 / 8.3-7.6
TPHK8T6-6(S)E	3	A9V	5060	200-230 / 342-380220-240 / 380-440	3.43.7	13.4-13.0 / 7.8-7.413.4-12.6 / 7.7-7.0	1.11.3	14.6-13.9 / 8.5-8.016.4-15.1 / 9.4-8.4
