Product Feature

The new feature of TP3_P(T)B series with adding silver ion to the pump casing has been scientifically proven to inhibit microbial growth by 99%

over a 24-hour period.

Manufactured with non-corrosive rust proof materials.

Special design high efficiency and low noise impeller.

High quality mechanical seal ensuring no leakage and long life.

Compact design, small size, easy installation.

Every pumps tested in our factory to ensure quality and reliability.

High performance, electricity saving motor with patented cooling construction. Build-in thermal overload protector for motor burnt out protection.

Operating Condition

Ambient temperature:Max. +40°C

Liquid temperature range:+4°C~+40°C

Suction head: Max. 8 m

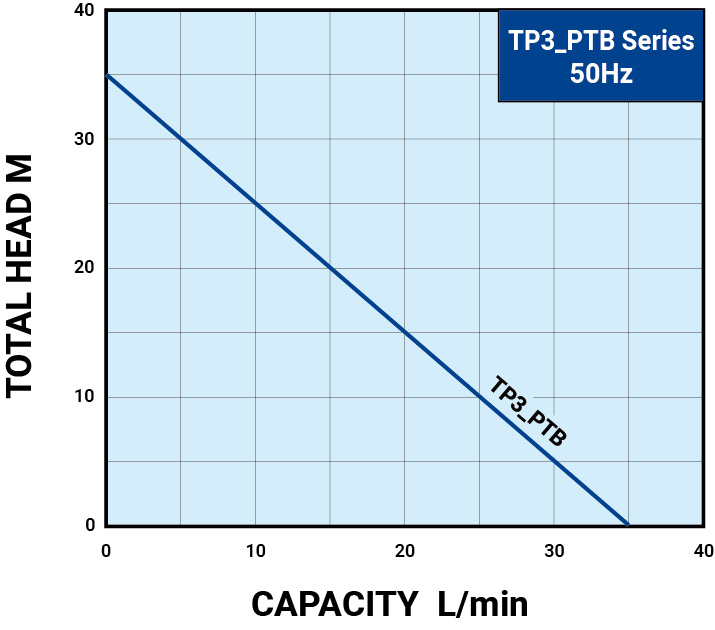

TP3_P(T)B , 50Hz

Compare Products

Type
TP320P(T)B
TP325P(T)B
Type Power
(kW)
Phase
(Ø)
Cycle
(Hz)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TP320P(T)B 0.37 1 50 200-240 2.7 ¾" ¾" 35 35 6.7 7.4 72
TP325P(T)B 0.37 1 50 200-240 2.7 1" 1" 35 35 6.7 7.4 72

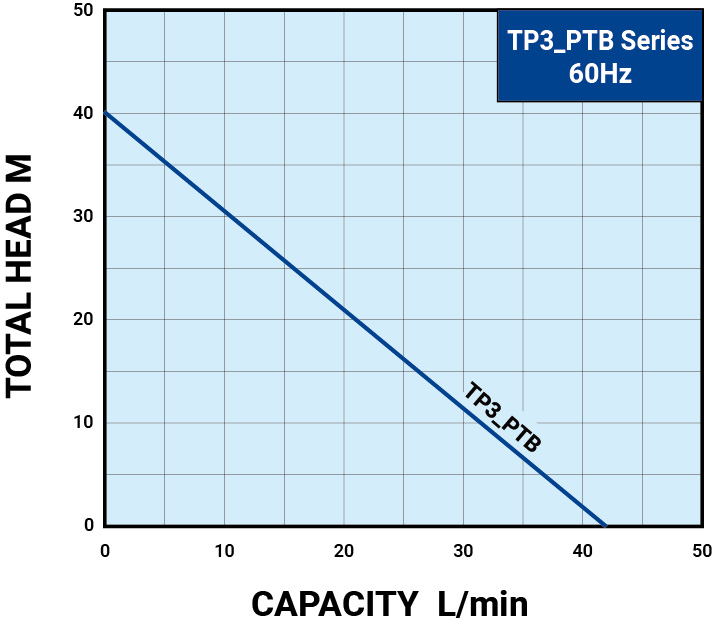

TP3_P(T)B , 60Hz

Compare Products

Type
TP320P(T)B
TP325P(T)B
Type Power
(kW)
Phase
(Ø)
Cycle
(Hz)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TP320P(T)B 0.37 1 60 110/220 5.2/2.6 ¾" ¾" 40 42 6.7 7.3 72
TP325P(T)B 0.37 1 60 110/220 5.2/2.6 1" 1" 40 42 6.7 7.3 72

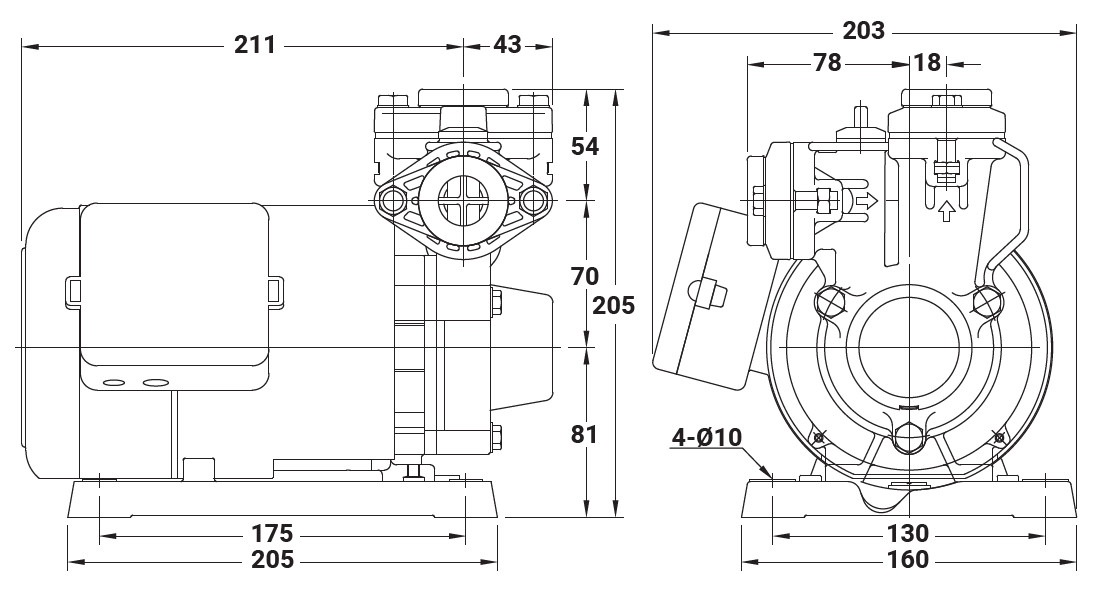

Dimensions (mm)

i.Catalog

Catalog

TP3_PTB Series Direct Water Pump

Updated on 2024/04/15

Thank you TP3_PTB Series (Antimicrobial) products !
