Product Features
Product Feature
The new feature of TP8_P(T)B series with adding silver ion to the pump casing has been scientifically proven to inhibit microbial growth by 99%
over a 24-hour period.
Manufactured with non-corrosive rust proof materials.
Special design corrosive resistant pressure tank with good appearance.
Appropriate reliable check valve with silent operation.
Compact design, small size, easy installation.
Every pumps tested in our factory to ensure quality and reliability.
High performance, electricity saving motor with patented cooling construction. Build-in thermal overload protector for motor burnt out protection.
Operating Condition
Ambient temperature：Max. +40°C
Liquid temperature range：+4°C~+40°C
Suction head: Max. 8 m
Inlet pressure: Lower than the pressure switch OFF setting. ( See Specification )

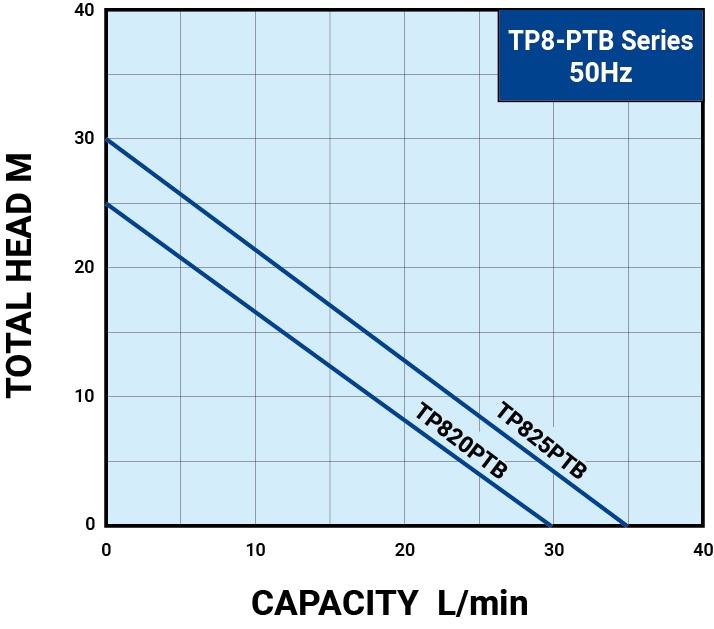

Specification, 50Hz
Compare Products
| Type |
| TP820P(T)B |
| TP825P(T)B |

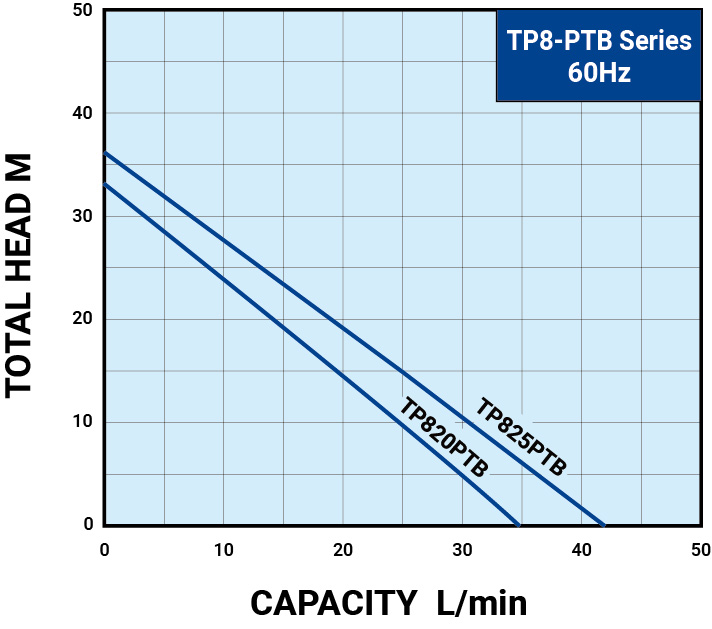

Specification, 60Hz
Compare Products
| Type |
| TP820P(T)B |
| TP825P(T)B |

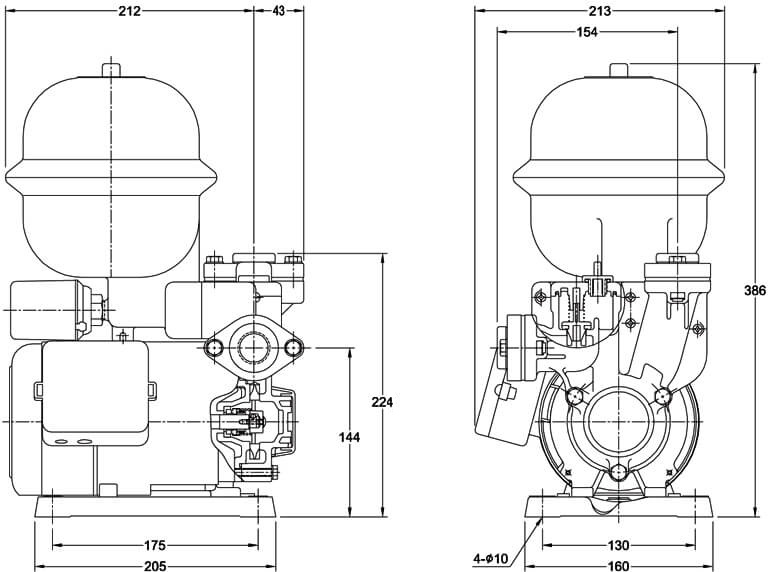

Dimensions (mm)
i.Catalog
Catalog
TP8_PTB Series Automatic Booster Pump
Updated on 2024/03/26
Thank you TP8_PTB Series (Antimicrobial) products !
