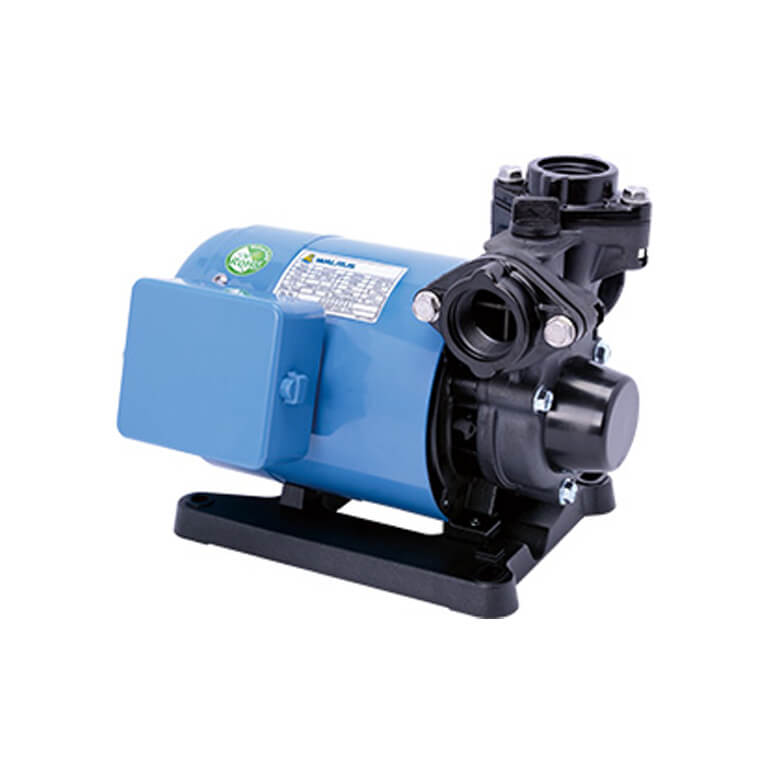

Direct Water Pump

Product Feature

Manufactured with non-corrosive rust proof materials.

Special design high efficiency and low noise impeller.

High quality mechanical seal ensuring no leakage and long life.

Compact design, small size, easy installation.

Every pumps tested in our factory to ensure quality and reliability.

High performance, electricity saving motor with patented cooling construction. Build-in thermal overload protector for motor burnt out protection.

Operating Condition

Ambient temperature:Max. +40°C

Liquid temperature range:+4°C~+40°C

Suction head: Max. 8 m

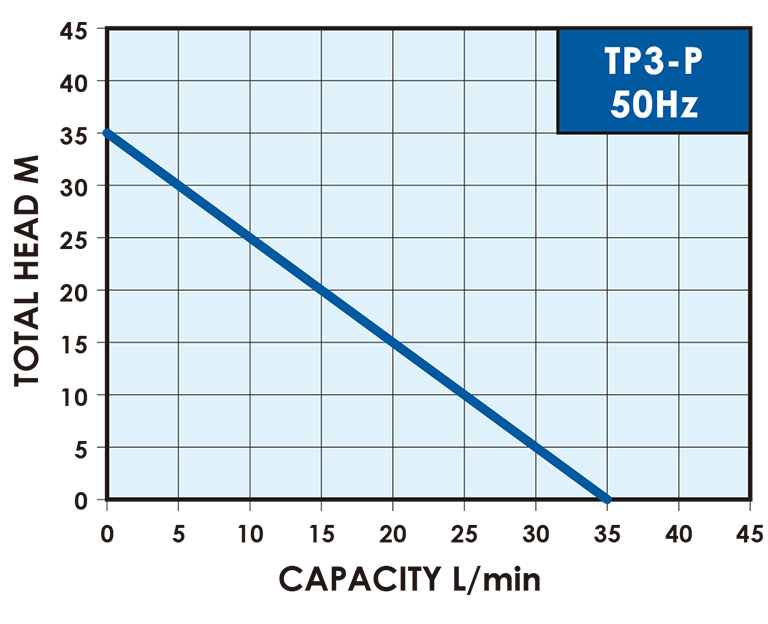

50Hz

Compare Products

Type
TP320P(T)
TP325P(T)
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TP320P(T) 0.37 1 200-240 2.7 ¾" ¾" 35 35 6.7 7.4 72
TP325P(T) 0.37 1 200-240 2.7 1" 1" 35 35 6.7 7.4 72

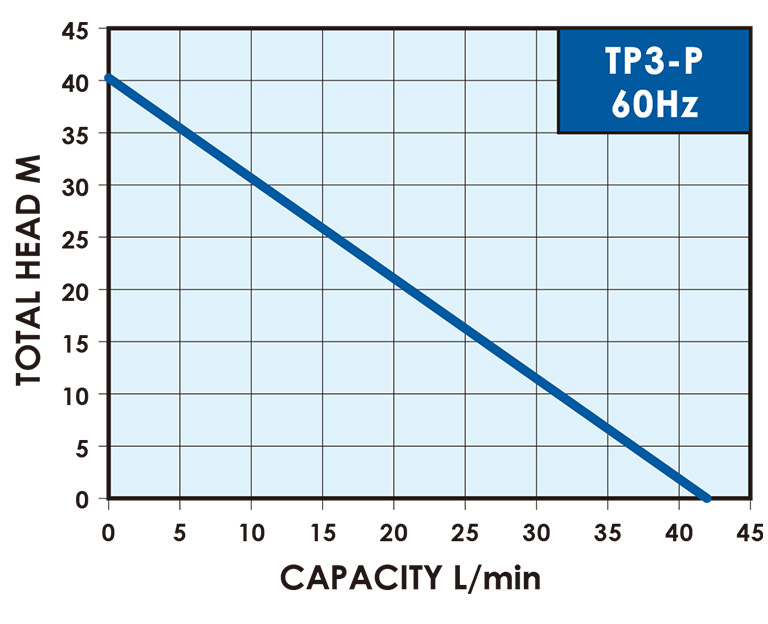

60Hz

Compare Products

Type
TP320P(T)
TP325P(T)
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TP320P(T) 0.37 1 110/220 5.2/2.6 ¾" ¾" 40 42 6.7 7.3 72
TP325P(T) 0.37 1 110/220 5.2/2.6 1" 1" 40 42 6.7 7.3 72

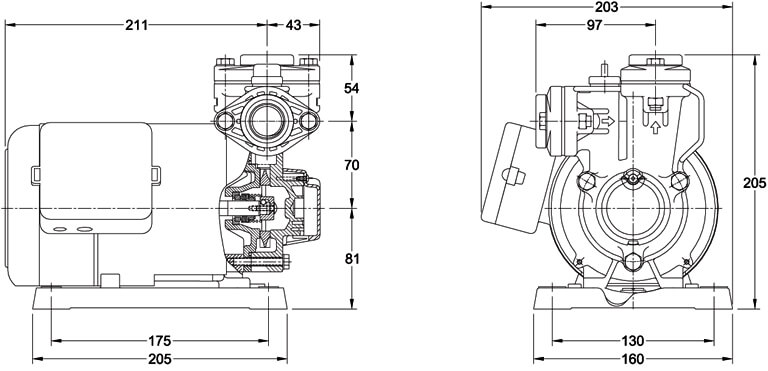

Dimensions (mm)

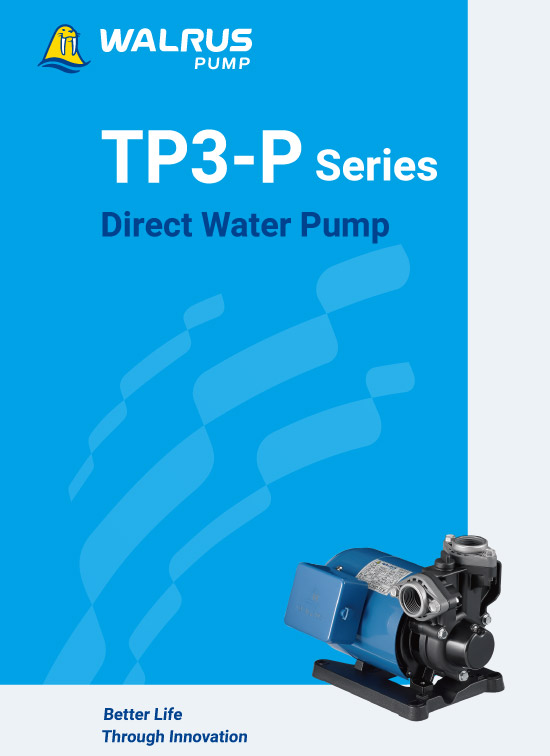

i.Catalog

Catalog

TP3-P(T) Series Direct Water Pump

Updated on 2024/03/26

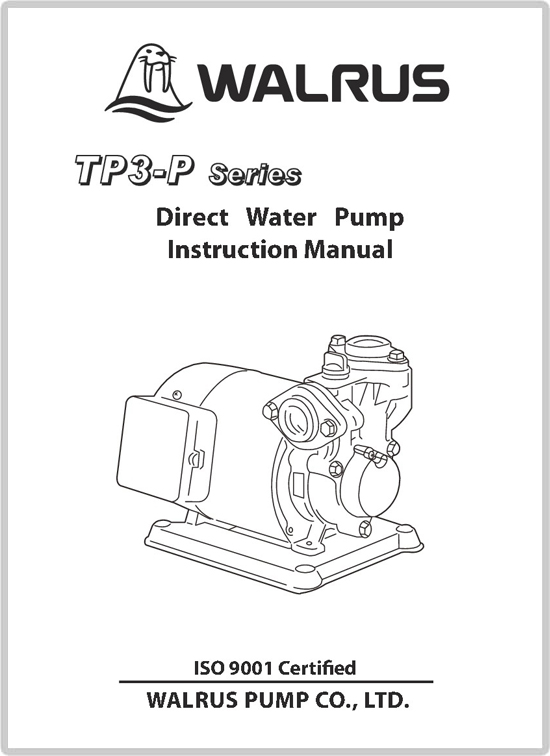

ii.Instruction Manual

Instruction Manual

TP3-P(T) Series Instruction Manual

Updated on 2024/03/29

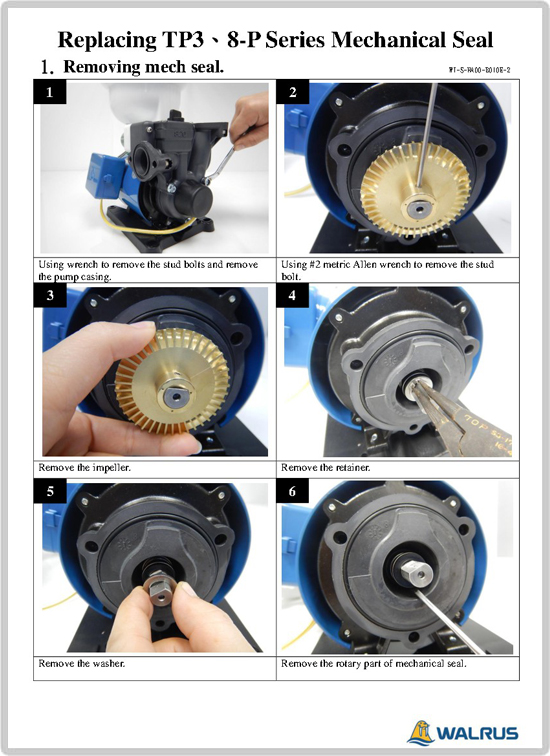

iii.Mechanical Seal

Service Manual

TP3-PT Series Mechanical Seal Manual

Updated on 2024/03/29
