Product Feature

Multistage Centrifugal Pump

Multistage design provides steady, quiet and vibrationfree operation for years of trouble-free service.

Close coupled, space saving design provides easy installation.

All parts in contact with water are made from corrosion resistant materials.

The pump is installed with thermostat protection switch to protect against dry running. The pump will shut off when water temperature exceeds 130°F (55°C).

The motor has a built-in thermal overload to protect against high operating temperatures and over current.

The pumps will lift water up to 7.6m. with foot valve and pump suction piping filled with water

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: +4°C ~ +40°C

System Pressure : Max. 8.5 kg/cm²

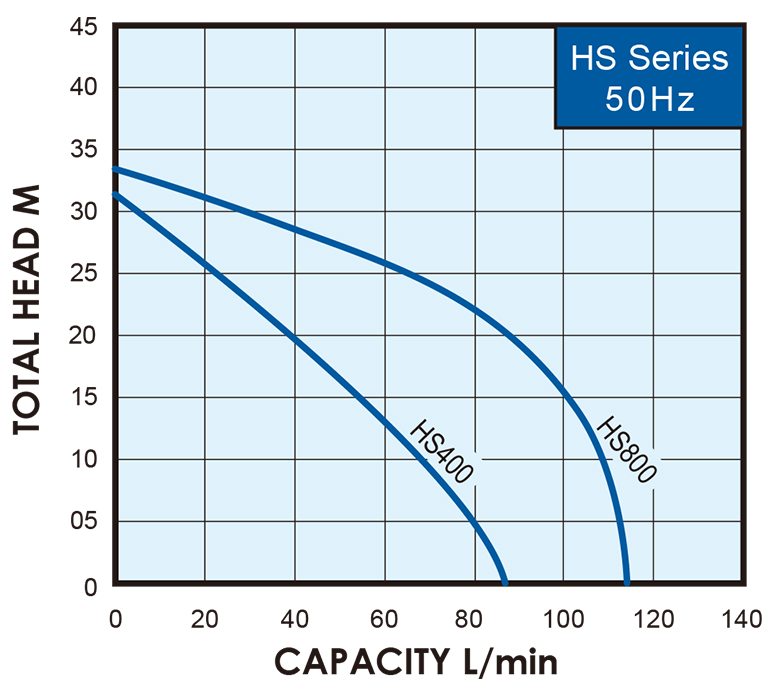

Specification, 50Hz

Compare Products

Type
HS400
HS800
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
HS400 0.37 1 200-240 2.8 1" 1" 31 85 8.1 8.6 45
HS800 0.75 1 200-240 4.5 1" 1" 31 85 10.1 10.9 36

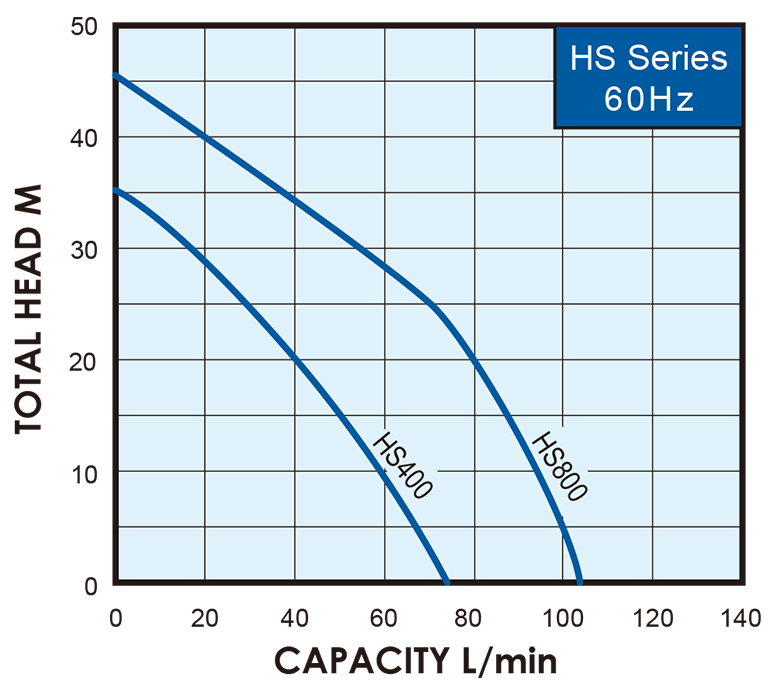

Specification, 60Hz

Compare Products

Type
HS400
HS800
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
HS400 0.37 1 110/220 6.0/3.0 1" 1" 36 75 8.1 8.5 45
HS800 0.75 1 110/220 10.0/5.0 1" 1" 46 100 10.1 10.9 36

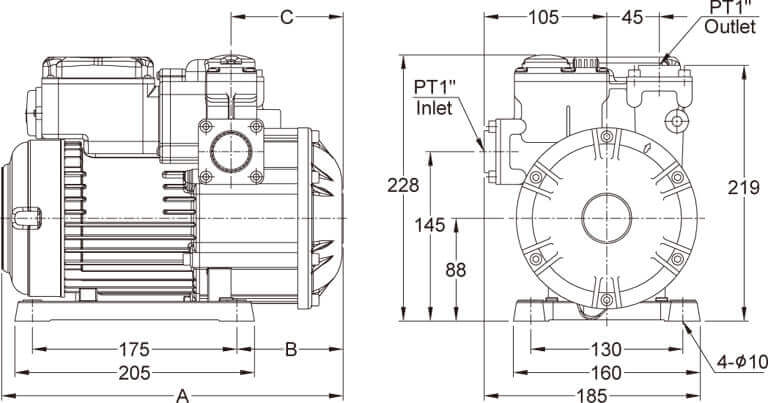

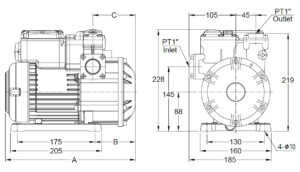

Dimensions (mm)

Model Cycle (Hz) Dimensions (mm)
A B C
HS400 50/60 292 91 96
HS800 50/60 344 96 101


i.Catalog

Catalog

HS Series Multistage Centrifugal Pump

Updated on 2023/10/17

ii.Instruction Manual

Instruction Manual

HS Series Instruction Manual

Updated on 2021/12/20
