Product Feature

Hot Water Pump

The HQCN is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

Compact design and quiet operation make the HQCN series suitable for many applications.

The HQCN is constructed from the top quality corrosion resistant materials.

The motor has built-in thermal overload to protect against high operating temperatures and over current.

The HQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

Relief value will automatically release the pressure when the HQCN full system pressure exceeds 5kg/cm².

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: +4°C ~ +90°C

Relief pressure value automatically : 5kg/cm²

Relative humidity: Max. 85% (RH)

Before using the pump, be sure the inlet pressure setting is lower than factory pressure setting.

Specification, 50Hz

Compare Products

Type
HQCN200
HQCN400
HQCN800
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Preset Activation
(kg/cm²)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
HQCN200 0.18 1 200-240 1.5 1" 1" 1.6 24 55 7.4 8.0 36
HQCN400 0.37 1 200-240 2.8 1" 1" 2.0 31 85 8.4 9.0 36
HQCN800 0.75 1 200-240 4.5 1" 1" 2.0 33 110 10.9 11.5 36

Specification, 60Hz

Compare Products

Type
HQCN200
HQCN400
HQCN800
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Preset Activation
(kg/cm²)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
HQCN200 0.18 1 110/220 4.0/2.0 1" 1" 1.6 23 60 7.4 8.5 36
HQCN400 0.37 1 110/220 6.0/3.0 1" 1" 1.8 26 80 8.4 9.5 36
HQCN800 0.75 1 110/220 9.0/4.5 1" 1" 2.0 27 120 10.9 11.5 36

Dimensions (mm)

Model Cycle (Hz) Dimensions (mm)
A B C
HQCN200 50/60 355 153 158
HQCN400 50/60 355 153 158
HQCN800 50/60 410 162 167

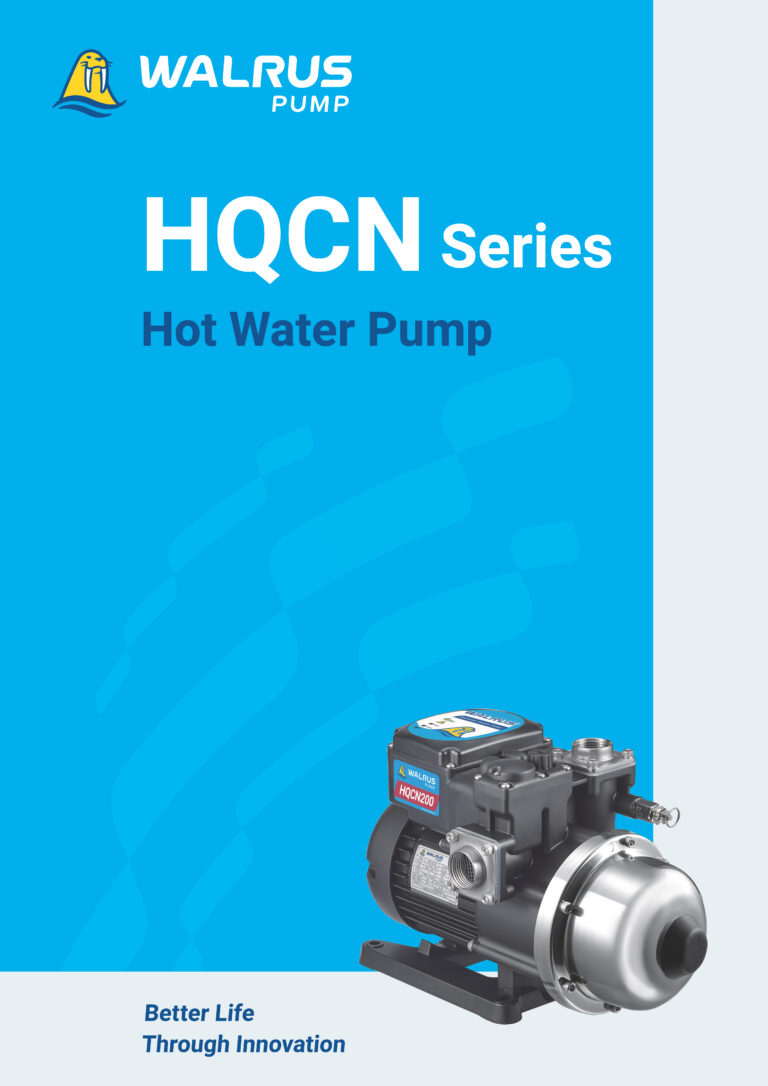

i.Catalog

Catalog

HQCN Series Hot Water Pump

Updated on 2024/04/15

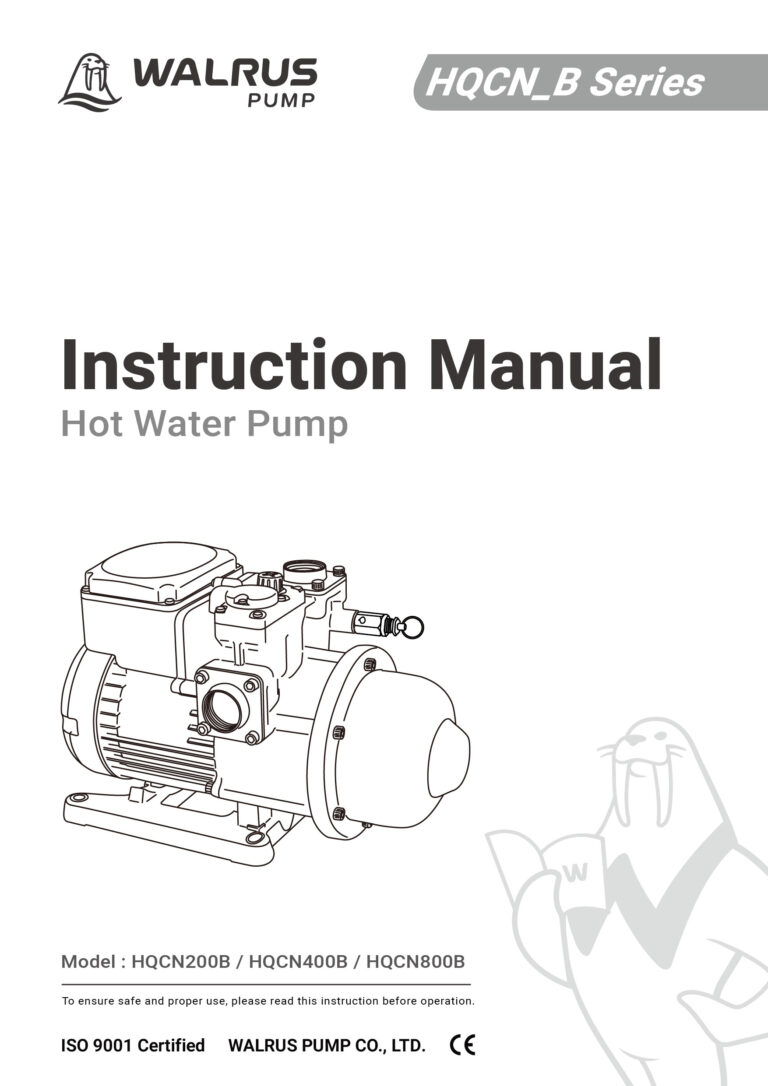

ii.Instruction Manual

Instruction Manual

HQCN Series Instruction Manual

Updated on 2021/12/20

iii.Mechanical Seal

Service Manual

Adjust pressure switch

Updated on 2021/12/20
