Product Features

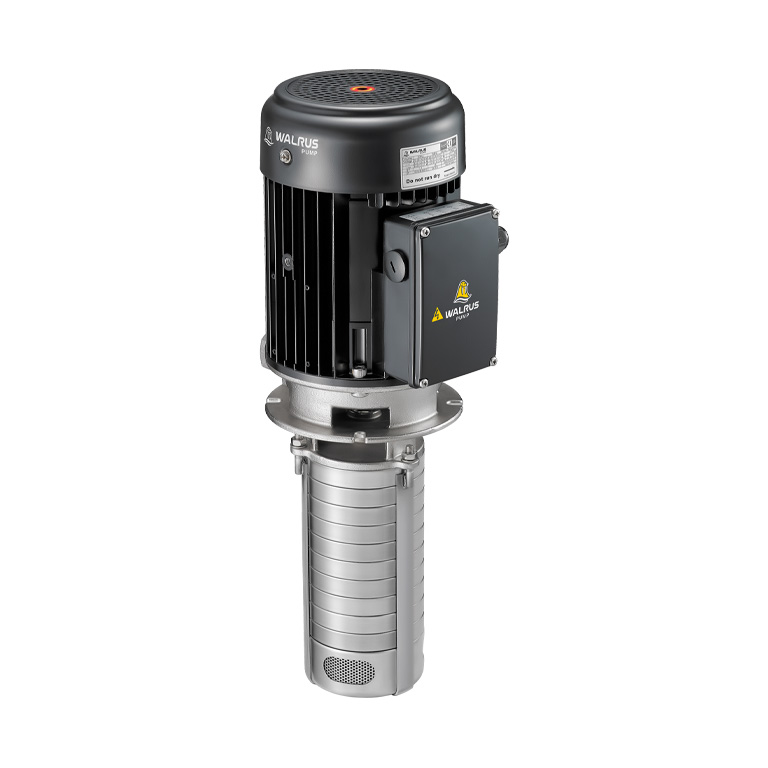

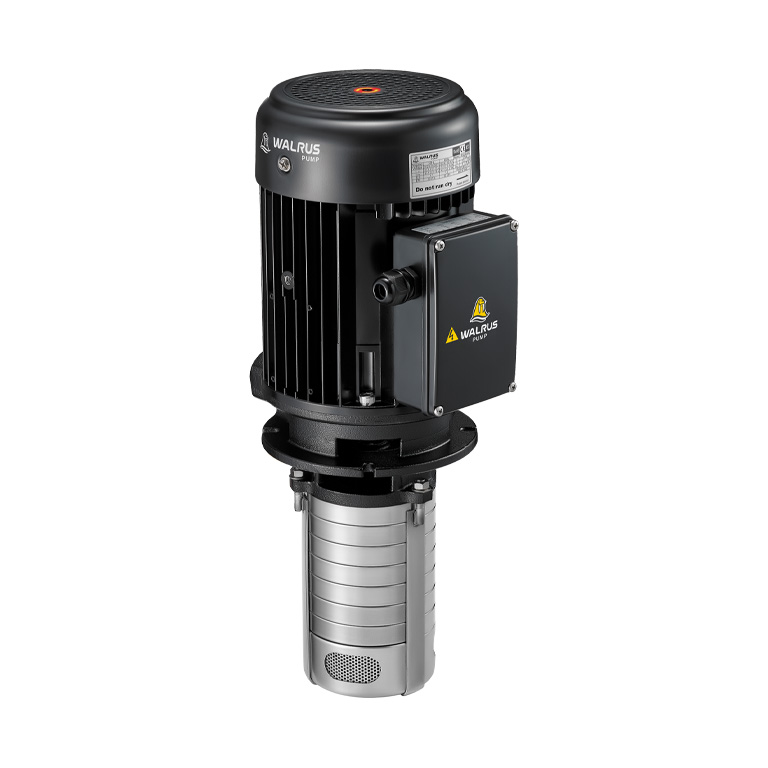

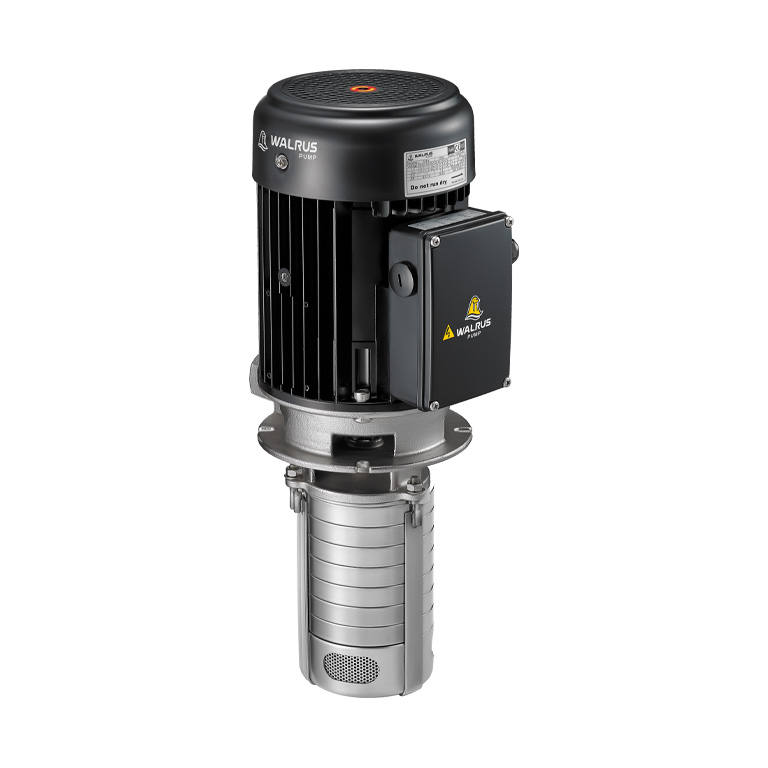

Vertical Multistage Centrifugal Pump

Applications

The TPMK is vertical multistage centrifugal pump, designed for industrial use, specially for machine tool. It is suitable to carry _uids such as water, coolant, light oil and other clean, non aggressive matters:

Industrial circulation system

Washing/cleaning system

Filtration system

Pump Construction

Submersible vertical centrifugal pump, self-priming, co-axial pump-motor design, impellers mounted on extended motor shaft. Main working parts made by stainless steel.

Motor

Enclosure class: IP54

Insulation class: F.

Nominal speed: 2900 or 3500 rpm

Frequency range: 50 or 60 Hz

Operating Conditions

Liquid temperature: +0°C ~ +90°C

Ambient temperature: Max. +40°C

Operating pressure: Max. 15 kg/cm²

Submerged depth: Min. 40mm

Strainer Diameter: Ø2mm

Particle Size : Below 2mm

Liquids maximum content of solid

particles in suspension：50g/m³

Kinematical Viscosity : 32cst(mm²/s)

Voltages Code

Code: 6V

PH: 3

50Hz: 200-230 / 342-415

60Hz: 220-240 / 380-480

Code: 9V

PH: 3

50Hz: 200-230 / 342-380

60Hz: 220-240 / 380-440

Model code

TPMK1T_50Hz,2900rpm

Compare Products (multiple options available)

Type
TPMK1T10-10(S)
TPMK1T12-12(S)
TPMK1T14-14(S)
Type Phase
(Ø)		 Cycle
(Hz)		 Volts
(V)		 P2
(kW)		 Ampere I 1/1
(A)		 Ampere I max
(A)		 N.W.
(kg)		 Dim. L
(mm)		 Dim. A
(mm)		 Dim. B
(mm)		 Dim. C
(mm)		 Dim. D
(mm)		 Dim. E
(mm)
TPMK1T10-10(S) 3 50 200-230 / 342-415 1.1 5.2-5.4 / 3.1-3.4 5.5-5.7 / 3.3-3.5 17.6 554 284 270 232 111 145
TPMK1T12-12(S) 3 50 200-230 / 342-415 1.1 5.2-5.4 / 3.1-3.4 5.5-5.7 / 3.3-3.5 18.1 590 284 306 232 111 145
TPMK1T14-14(S) 3 50 200-230 / 342-415 1.1 5.2-5.4 / 3.1-3.4 5.5-5.7 / 3.3-3.5 18.6 626 284 342 232 111 145

TPMK1T_50Hz/60Hz, 2900/3500rpm

Compare Products (multiple options available)

Type
TPMK1T10-10(S)
TPMK1T12-12(S)
Type Phase
(Ø)		 Cycle
(Hz)		 Volts
(V)		 P2
(kW)		 Ampere I 1/1
(A)		 Ampere I max
(A)		 N.W.
(kg)		 Dim. L
(mm)		 Dim. A
(mm)		 Dim. B
(mm)		 Dim. C
(mm)		 Dim. D
(mm)		 Dim. E
(mm)
TPMK1T10-10(S) 3 5060 200-230 / 342-380200-240 / 380-440 1.51.5 6.3-6.1 / 3.6-3.55.8-5.5 / 3.4-3.1 6.8-6.5 / 3.9-3.78.3-7.6 / 4.8-4.2 18.4 569 299 270 244 123 181
TPMK1T12-12(S) 3 5060 200-230 / 342-380200-240 / 380-440 1.51.5 6.3-6.1 / 3.6-3.55.8-5.5 / 3.4-3.1 6.8-6.5 / 3.9-3.78.3-7.6 / 4.8-4.2 18.9 605 299 306 244 123 181

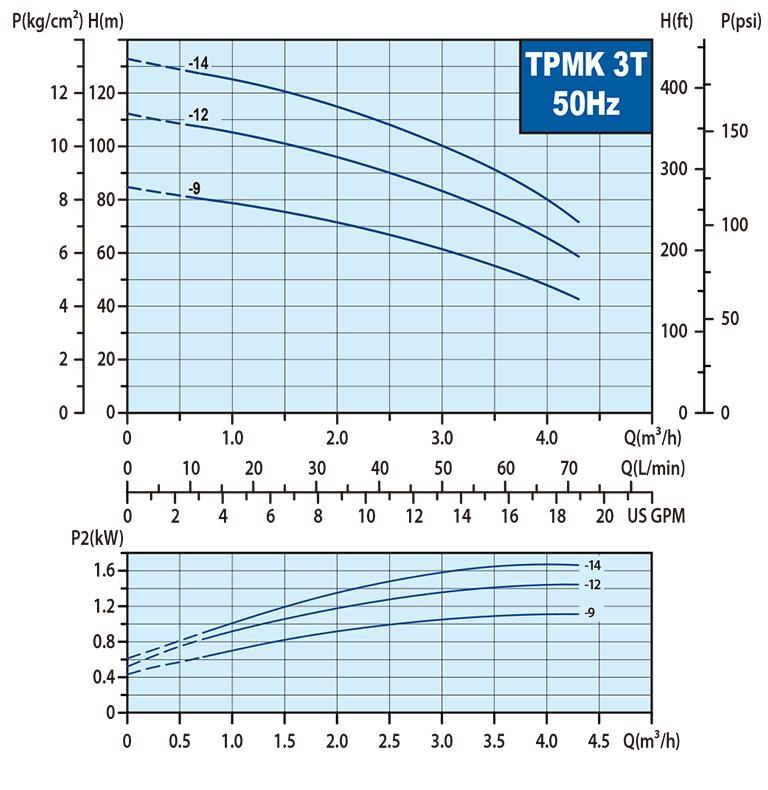

TPMK3T_50Hz,2900rpm

Compare Products (multiple options available)

Type
TPMK3T9-9(S)
TPMK3T12-12(S)
TPMK3T14-14(S)
Type Phase
(Ø)		 Cycle
(Hz)		 Volts
(V)		 P2
(kW)		 Ampere I 1/1
(A)		 Ampere I max
(A)		 N.W.
(kg)		 Dim. L
(mm)		 Dim. A
(mm)		 Dim. B
(mm)		 Dim. C
(mm)		 Dim. D
(mm)		 Dim. E
(mm)
TPMK3T9-9(S) 3 50 200-230 / 342-380 1.1 5.2-5.4 / 3.1-3.4 5.5-5.7 / 3.3-3.5 17.3 536 284 252 232 111 145
TPMK3T12-12(S) 3 50 200-230 / 342-380 1.5 6.3-6.1 / 3.6-3.5 6.8-6.5 / 3.9-3.7 18.8 605 299 306 244 123 181
TPMK3T14-14(S) 3 50 200-230 / 342-380 2.2 9.5-10.5 / 5.5-5.6 10.2-10.9 / 5.9-5.9 22.1 663 321 342 244 123 181

TPMK3T_50Hz/60Hz, 2900/3500rpm

Compare Products (multiple options available)

Type
TPMK3T9-9(S)
Type Phase
(Ø)		 Cycle
(Hz)		 Volts
(V)		 P2
(kW)		 Ampere I 1/1
(A)		 Ampere I max
(A)		 N.W.
(kg)		 Dim. L
(mm)		 Dim. A
(mm)		 Dim. B
(mm)		 Dim. C
(mm)		 Dim. D
(mm)		 Dim. E
(mm)
TPMK3T9-9(S) 3 5060 200-230 / 342-380200-240 / 380-440 2.22.2 9.5-10.5 / 5.5-5.68.6-8.4 / 4.9-5.0 10.2-10.9 / 5.9-5.912.1-11.2 / 6.9-6.4 20.9 573 321 252 244 123 181

TPMK5T_50Hz,2900rpm

Compare Products (multiple options available)

Type
TPMK5T7-7(S)
TPMK5T9-9(S)
TPMK5T11-11(S)
TPMK5T13-13(S)
Type Phase
(Ø)		 Cycle
(Hz)		 Volts
(V)		 P2
(kW)		 Ampere I 1/1
(A)		 Ampere I max
(A)		 N.W.
(kg)		 Dim. L
(mm)		 Dim. A
(mm)		 Dim. B
(mm)		 Dim. C
(mm)		 Dim. D
(mm)		 Dim. E
(mm)
TPMK5T7-7(S) 3 50 200-230 / 342-380 1.5 6.3-6.1 / 3.6-3.5 6.8-6.5 / 3.9-3.7 17.6 515 299 216 244 123 181
TPMK5T9-9(S) 3 50 200-230 / 342-380 2.2 9.5-10.5 / 5.5-5.6 10.2-10.9 / 5.9-5.9 20.9 573 321 252 244 123 181
TPMK5T11-11(S) 3 50 200-230 / 342-380 3 12.2-13.1 / 7.1-7.7 13.4-14.0 / 7.9-7.8 24.6 634 346 288 244 123 181
TPMK5T13-13(S) 3 50 200-230 / 342-380 3 12.2-13.1 / 7.1-7.7 13.4-14.0 / 7.9-7.8 25.1 670 346 324 244 123 181

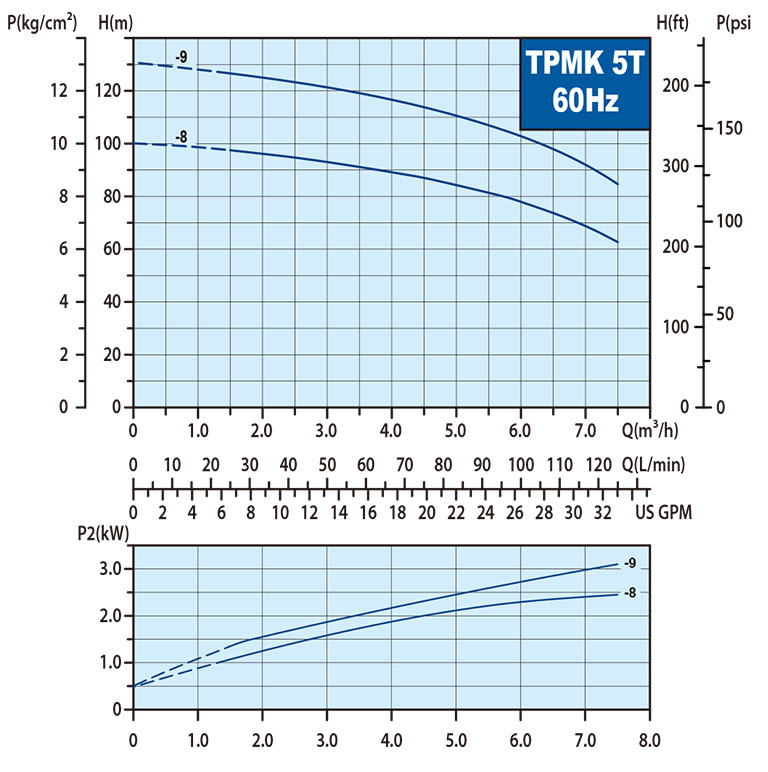

TPMK5T_50Hz/60Hz, 2900/3500rpm

Compare Products (multiple options available)

Type
TPMK5T8-8(S)
TPMK5T9-9(S)
Type Phase
(Ø)		 Cycle
(Hz)		 Volts
(V)		 P2
(kW)		 Ampere I 1/1
(A)		 Ampere I max
(A)		 N.W.
(kg)		 Dim. L
(mm)		 Dim. A
(mm)		 Dim. B
(mm)		 Dim. C
(mm)		 Dim. D
(mm)		 Dim. E
(mm)
TPMK5T8-8(S) 3 5060 200-230 / 342-380200-240 / 380-440 33 12.2-13.1 / 7.1-7.711.2-10.7 / 6.4-6.3 13.4-14.0 / 7.9-7.814.5-13.3 / 8.3-7.6 23.9 580 346 234 244 123 181
TPMK5T9-9(S) 3 5060 200-230 / 342-380200-240 / 380-440 3.43.7 13.4-13.0 / 7.8-7.413.4-12.6 / 7.7-7.0 14.6-13.9 / 8.5-8.016.4-15.1 / 9.4-8.4 25.8 618 366 252 244 123 181

Dimensions (mm)

TPMK1T
TPMK3T
TPMK5T

TPMK Series

TPMK1T

TPMK3T

TPMK5T

i.Catalog

Catalog

TPMK Series Vertical Multistage Centrifugal Pump

Updated on 2024/03/29

7.14MB

ii.Instruction Manual

Instruction Manual

TPMK Series Vertical Multistage Centrifugal Pump

Updated on 2024/03/29

689KB
