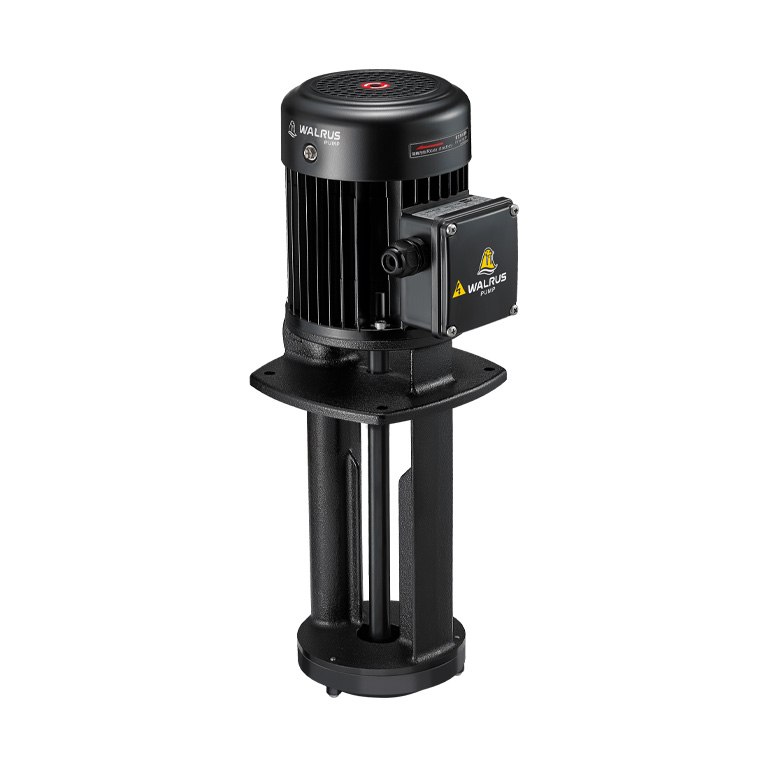

Coolant Pump

Application

TPAK Series coolant pump is designed for the circulation and spraying of cooling lubricants, especially machine tools.This series may use on all machine tools performing Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. It is suitable to carry liquids such as water, coolant, light oil and other clean, non aggressive matters.

Construction

This pump is one-chamber vertical centrifugal pump, co-axial pump/motor design, impellers mounted on extended motor shaft .

Motor

Nominal speed: 2900 / 3500 rpm

Frequency: 50 / 60 Hz

Standard voltages: 220V/380V

Enclosure protection: IP54

Insulation class: F.

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: +0°C ~ +90°C

Operating pressure: Max. 10 kg/cm²

Mode code

TPAK Series

Compare Products

Type
TPAK2
TPAK4
TPAK8
TPAK15
Type Phase
(Ø)
Cycle
(Hz)
Volts
(V)
Input Power
(W)
Ampere
(A)
TPAK2 3 5060 200-255 / 380-440200-255 / 380-480 270350 1.0-1.3 / 0.6-0.81.2 / 0.7
TPAK4 3 5060 200-255 / 380-440200-255 / 380-480 440620 1.5-1.9 / 0.9-1.22.0 / 1.1
TPAK8 3 5060 200-255 / 380-440200-255 / 380-480 9301320 3.1-4.4 / 1.9-2.64.0 / 2.4
TPAK15 3 5060 220 / 380220 / 380 13002000 4.8 / 2.85.4 / 3.1

Dimensions(mm)

TPAK2
Model DIMENSIONS(mm) N.W.(kg) Maximum Pallet Amount
A B C D E F G H I J K
TPAK2-15 325 150 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 9.5 36pcs
TPAK2-18 355 180 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 10.0 36pcs
TPAK2-25 425 250 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 10.6 24pcs
TPAK4-15 386 150 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 11.2 24pcs
TPAK4-18 416 180 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 11.9 24pcs
TPAK4-25 486 250 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 12.7 24pcs
TPAK8-18 457 180 277 29 Rp 1” 95 111 Ø150 Ø150 190 4xØ9 PCD185 15.5 24pcs
TPAK8-25 527 250 277 29 Rp 1” 95 111 Ø150 Ø150 190 4xØ9 PCD185 17.1 24pcs
TPAK15-25 573.5 250 323.5 40 Rp 1½” 122 124 Ø180 Ø180 200 4xØ9 PCD210 24.0 15pcs
TPAK4
Model DIMENSIONS(mm) N.W.(kg) Maximum Pallet Amount
A B C D E F G H I J K
TPAK2-15 325 150 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 9.5 36pcs
TPAK2-18 355 180 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 10.0 36pcs
TPAK2-25 425 250 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 10.6 24pcs
TPAK4-15 386 150 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 11.2 24pcs
TPAK4-18 416 180 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 11.9 24pcs
TPAK4-25 486 250 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 12.7 24pcs
TPAK8-18 457 180 277 29 Rp 1” 95 111 Ø150 Ø150 190 4xØ9 PCD185 15.5 24pcs
TPAK8-25 527 250 277 29 Rp 1” 95 111 Ø150 Ø150 190 4xØ9 PCD185 17.1 24pcs
TPAK15-25 573.5 250 323.5 40 Rp 1½” 122 124 Ø180 Ø180 200 4xØ9 PCD210 24.0 15pcs
TPAK8
Model DIMENSIONS(mm) N.W.(kg) Maximum Pallet Amount
A B C D E F G H I J K
TPAK2-15 325 150 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 9.5 36pcs
TPAK2-18 355 180 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 10.0 36pcs
TPAK2-25 425 250 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 10.6 24pcs
TPAK4-15 386 150 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 11.2 24pcs
TPAK4-18 416 180 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 11.9 24pcs
TPAK4-25 486 250 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 12.7 24pcs
TPAK8-18 457 180 277 29 Rp 1” 95 111 Ø150 Ø150 190 4xØ9 PCD185 15.5 24pcs
TPAK8-25 527 250 277 29 Rp 1” 95 111 Ø150 Ø150 190 4xØ9 PCD185 17.1 24pcs
TPAK15-25 573.5 250 323.5 40 Rp 1½” 122 124 Ø180 Ø180 200 4xØ9 PCD210 24.0 15pcs
TPAK15
Model DIMENSIONS(mm) N.W.(kg) Maximum Pallet Amount
A B C D E F G H I J K
TPAK2-15 325 150 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 9.5 36pcs
TPAK2-18 355 180 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 10.0 36pcs
TPAK2-25 425 250 175 24 Rp ½” 80 113 Ø120 Ø120 160 4xØ8 PCD158 10.6 24pcs
TPAK4-15 386 150 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 11.2 24pcs
TPAK4-18 416 180 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 11.9 24pcs
TPAK4-25 486 250 236 28 Rp ¾” 85 111 Ø135 Ø135 170 4xØ9 PCD170 12.7 24pcs
TPAK8-18 457 180 277 29 Rp 1” 95 111 Ø150 Ø150 190 4xØ9 PCD185 15.5 24pcs
TPAK8-25 527 250 277 29 Rp 1” 95 111 Ø150 Ø150 190 4xØ9 PCD185 17.1 24pcs
TPAK15-25 573.5 250 323.5 40 Rp 1½” 122 124 Ø180 Ø180 200 4xØ9 PCD210 24.0 15pcs
