TPK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools, to carry fluids such as water, coolant, light oil and other clean, non aggressive matters.

Applicable Industries

Construction Industry

Agriculture & Fishing Industry

Manufacturing Industry

Electricity & New Energy Industry

Entertainment & Leisure Industry

Accommodation & Food Service Industry

Wholesale & Retail Trade

Water Supply & Pollution Control

Service Industry

Make an Enquiry

TPK SeriesPrice Table

Model No.	List Price
TPK2T11-8	請聯絡各區經銷商

備註 : 價格皆不含安裝費，實際施工費試現場環境報價。

Product Features

Product Features
Product Specifications

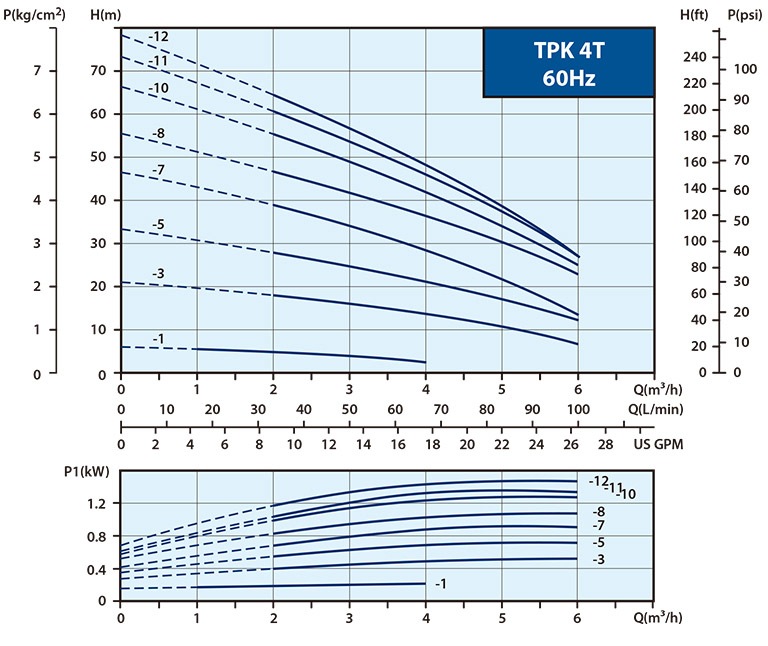

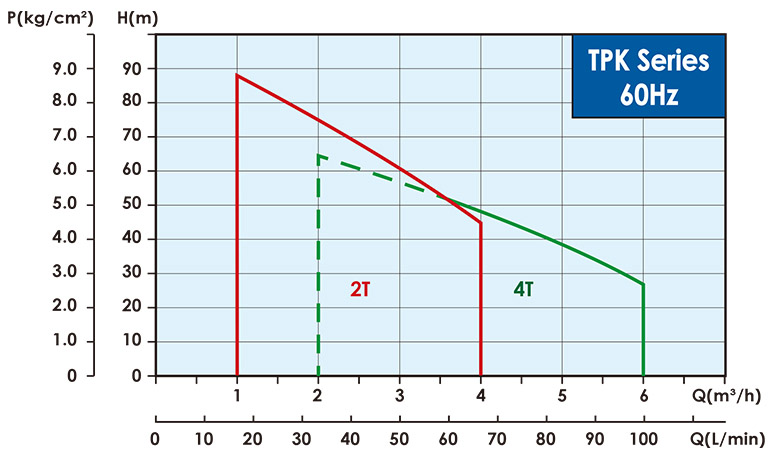

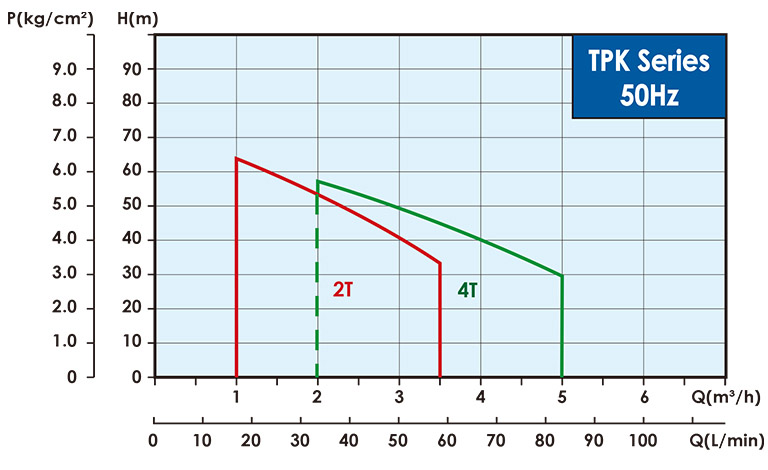

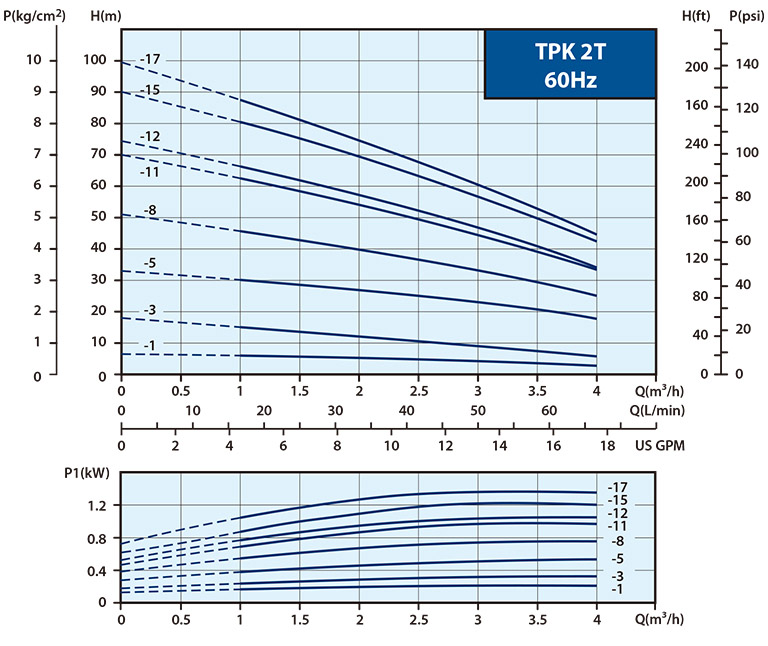

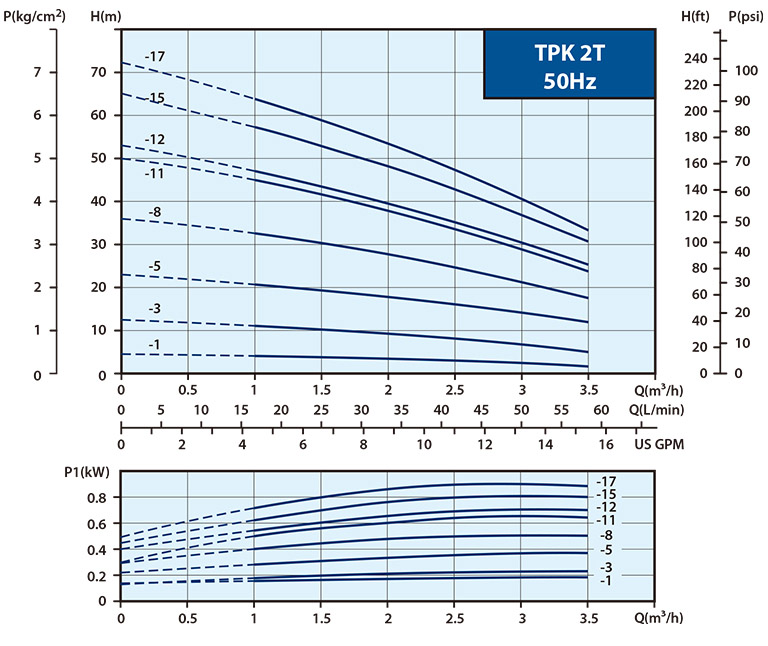

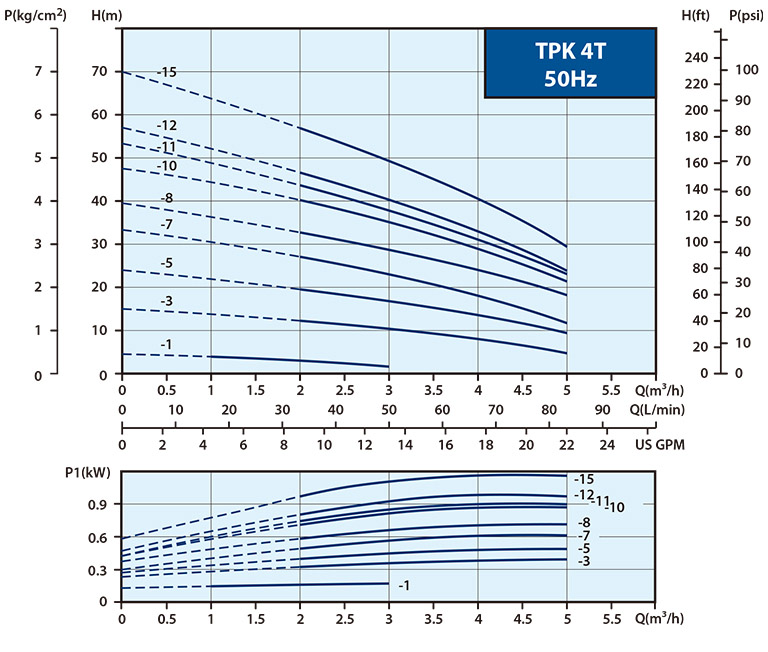

Performance Curve

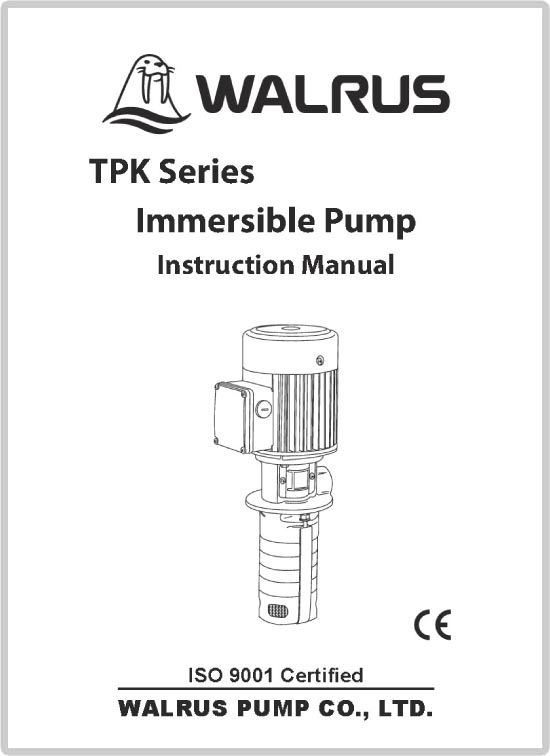

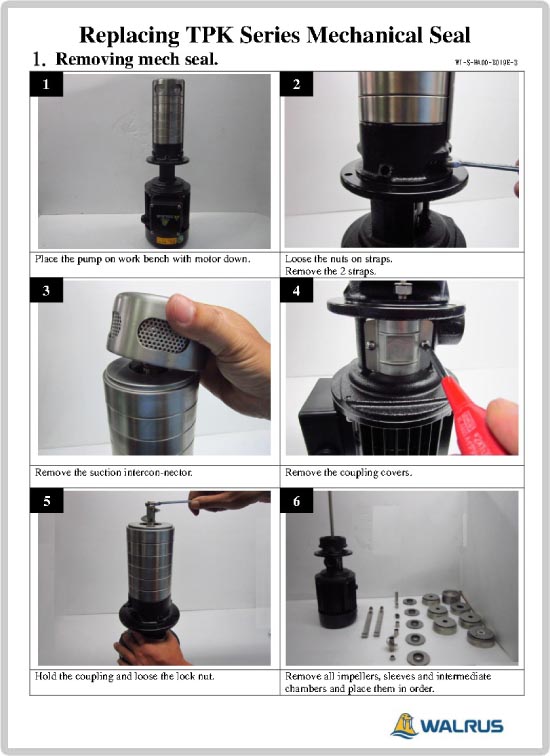

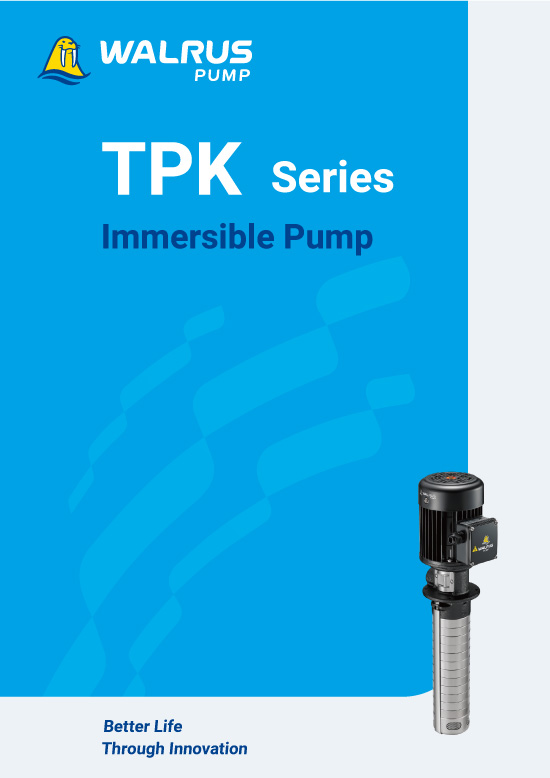

Download Center

Applications

TPK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools, to carry fluids such as water, coolant, light oil and other clean, non aggressive matters.

Construction:

Submersible vertical multistage centrifugal pump, self-priming, stub pump shaft per coupling connect with motor. Main working parts made by stainless steel.

Motor

Nominal speed: 3500 / 2900 rpm

Frequency range: 60 / 50 Hz

Voltage code: 220V/380V

Enclosed class: IP54

Insulation class: F.

Operating Condiction

Ambient temperature: Max. +40°C

Liquid temperature rang: +0°C ~ +90°C

Operating pressure: Max. 10 kg/cm²

Submerged depth: Min. 65mm

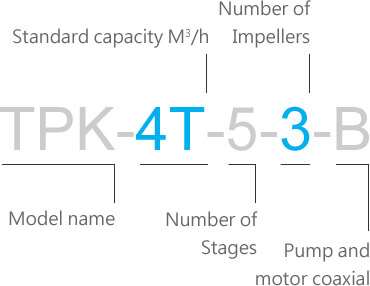

Model code

TPK2T

Compare Products (multiple options available)

Type
TPK2T5-1B
TPK2T3-3B
TPK2T5-5
TPK2T8-8
TPK2T11-11
TPK2T12-12
TPK2T15-15
TPK2T17-17

Type	Phase (Ø)	Voltage code	Cycle (Hz)	Volts (V)	Input Power (W)	Ampere (A)
TPK2T5-1B	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	220280	0.9 / 0.60.9 / 0.6
TPK2T3-3B	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	280370	0.9 / 0.71.1 / 0.6
TPK2T5-5	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	450600	2.6 / 1.52.2 / 1.5
TPK2T8-8	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	580820	2.9 / 1.72.7 / 1.6
TPK2T11-11	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	7001050	3.2 / 1.83.5 / 1.9
TPK2T12-12	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	7801160	3.5 / 1.93.6 / 2.0
TPK2T15-15	3	A3U	5060	200-240 / 380-415200-240 / 380-440	8501300	3.0 / 1.84.1 / 2.3
TPK2T17-17	3	A3U	5060	200-240 / 380-415200-240 / 380-440	9501450	3.6 / 2.15.0 / 2.7

TPK4T

Compare Products (multiple options available)

Type
TPK4T3-1B
TPK4T3-3B
TPK4T5-5
TPK4T7-7
TPK4T8-8
TPK4T10-10
TPK4T11-11
TPK4T12-12
TPK4T15-15

Type	Phase (Ø)	Voltage code	Cycle (Hz)	Volts (V)	Input Power (W)	Ampere (A)
TPK4T3-1B	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	250300	1.0 / 0.61.0 / 0.6
TPK4T3-3B	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	430550	2.8 / 1.42.2 / 1.2
TPK4T5-5	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	580900	2.9 / 1.72.7 / 1.6
TPK4T7-7	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	6801000	3.2 / 1.83.4 / 1.9
TPK4T8-8	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	7501160	3.5 / 1.93.6 / 2.0
TPK4T10-10	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	9001420	4.7 / 2.64.7 / 2.6
TPK4T11-11	3	A3U	5060	200-240 / 380-415200-240 / 380-440	9501450	3.6 / 2.15.0 / 2.7
TPK4T12-12	3	A3U	5060	200-240 / 380-415200-240 / 380-440	10501580	3.9 / 2.35.3 / 2.9
TPK4T15-15	3	53Q	50	200-240 / 380-440	1300	4.4 / 2.8

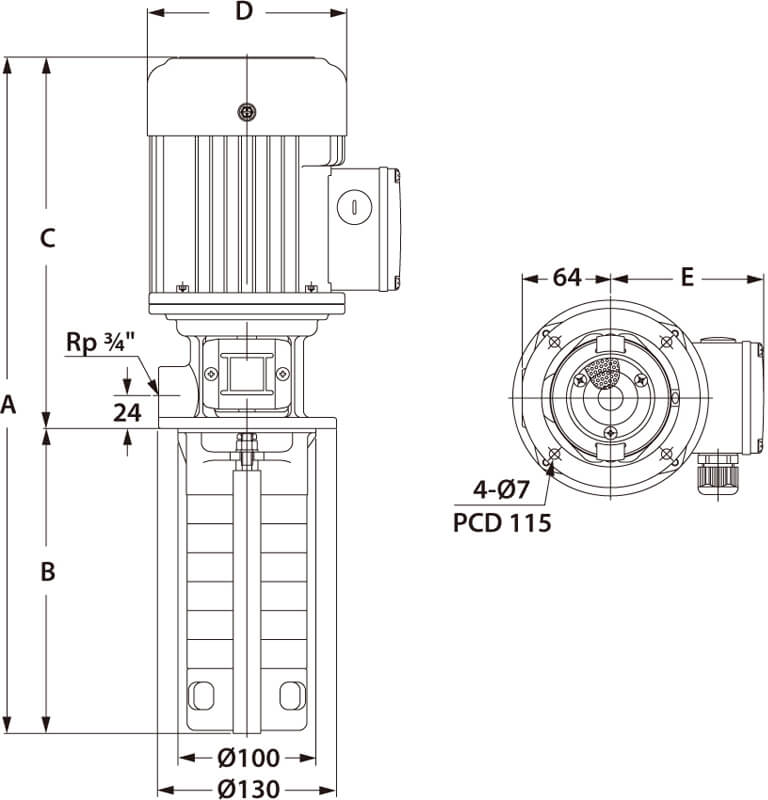

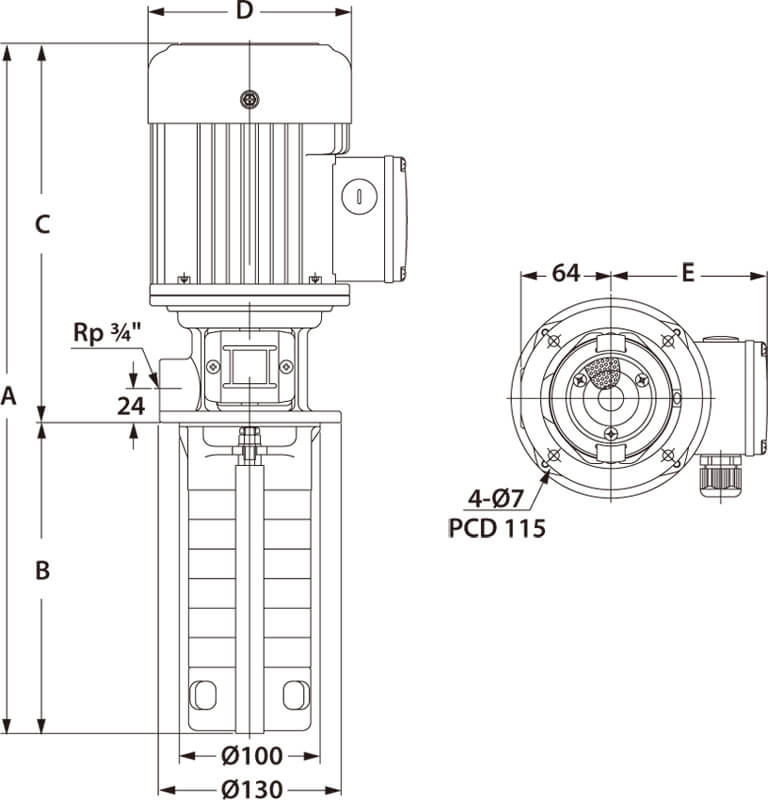

Dimensions (mm)

TPK2T

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	N.W.(kg)	Maximum Pallet Amount
TPK2T5-1B	447	221	226	123	101	8.7	30pcs
TPK2T3-3B	405	179	226	123	101	8.7	30pcs
TPK2T5-3B	447	221	226	123	101	8.9	30pcs
TPK2T8-3B	510	284	226	123	101	9.2	24pcs
TPK2T11-3B	573	347	226	123	101	9.6	24pcs
TPK2T5-5	491	221	270	144.5	111	12.1	30pcs
TPK2T8-5	554	284	270	144.5	111	12.4	24pcs
TPK2T10-5	596	326	270	144.5	111	12.6	24pcs
TPK2T11-5	617	347	270	144.5	111	12.7	18pcs
TPK2T15-5	701	431	270	144.5	111	13.0	18pcs
TPK2T8-8	554	284	270	144.5	111	12.7	24pcs
TPK2T11-8	617	347	270	144.5	111	13.0	18pcs
TPK2T11-11	657	347	310	144.5	111	14.3	18pcs
TPK2T15-12	741	431	310	144.5	111	14.5	18pcs
TPK2T15-15	741	431	310	144.5	111	15.0	18pcs
TPK2T19-15	825	515	310	144.5	111	15.4	18pcs
TPK2T19-17	825	515	310	144.5	111	15.8	18pcs

TPK4T

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	N.W.(kg)	Maximum Pallet Amount
TPK4T3-1B	405	179	226	123	101	8.4	30pcs
TPK4T5-1B	447	221	226	123	101	8.7	30pcs
TPK4T3-3B	449	179	270	144.5	111	11.8	30pcs
TPK4T5-3	491	221	270	144.5	111	12.0	30pcs
TPK4T8-3	554	284	270	144.5	111	12.3	24pcs
TPK4T19-3	785	515	270	144.5	111	13.4	18pcs
TPK4T5-5	491	221	270	144.5	111	12.1	30pcs
TPK4T8-5	554	284	270	144.5	111	12.4	24pcs
TPK4T11-5	617	347	270	144.5	111	12.7	18pcs
TPK4T15-5	701	431	270	144.5	111	13.0	18pcs
TPK4T19-5	785	515	270	144.5	111	13.3	18pcs
TPK4T19-7	825	515	310	144.5	111	14.8	18pcs
TPK4T8-8	594	284	310	144.5	111	13.8	24pcs
TPK4T11-8	657	347	310	144.5	111	14.1	18pcs
TPK4T15-8	741	431	310	144.5	111	14.4	18pcs
TPK4T19-8	825	515	310	144.5	111	14.8	18pcs
TPK4T11-10	657	347	310	144.5	111	14.2	18pcs
TPK4T15-10	741	431	310	144.5	111	14.5	18pcs
TPK4T19-10	825	515	310	144.5	111	14.9	18pcs
TPK4T11-11	657	347	310	144.5	111	14.3	18pcs
TPK4T15-12	741	431	310	144.5	111	14.6	18pcs
TPK4T19-12	825	515	310	144.5	111	14.8	18pcs
TPK4T15-15	741	431	310	144.5	111	15.0	18pcs
TPK4T19-15	825	515	310	144.5	111	15.4	18pcs
