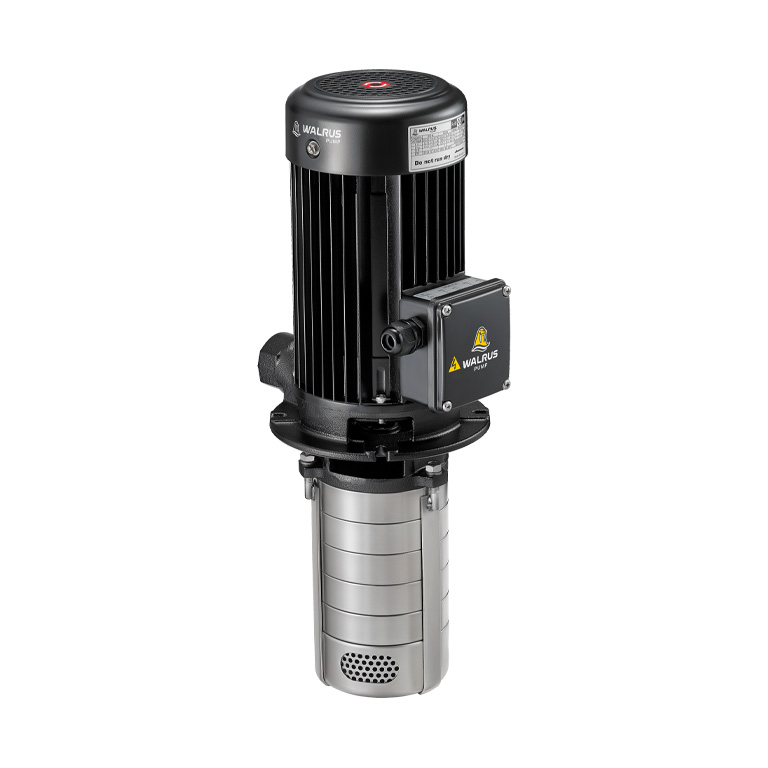

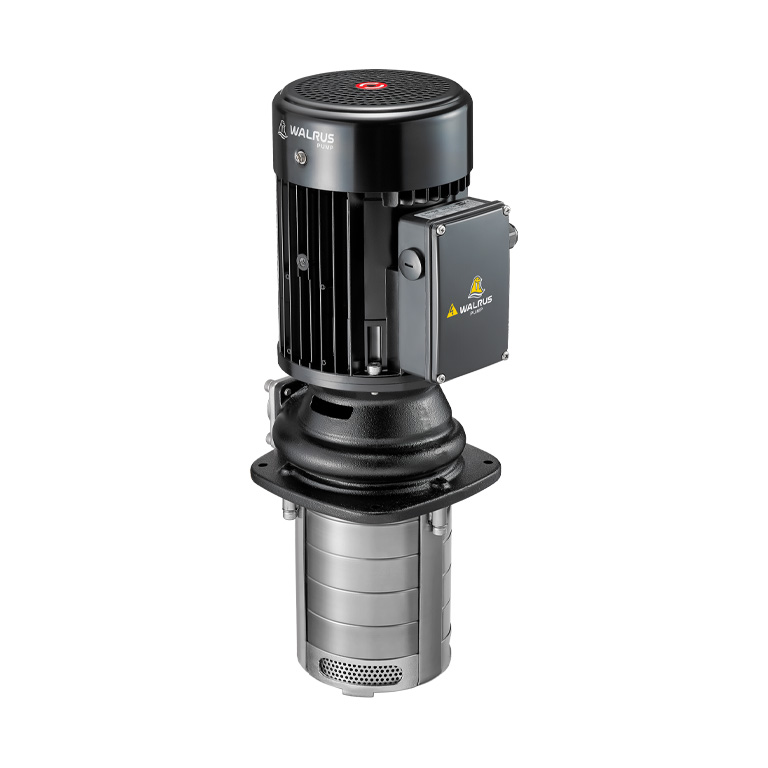

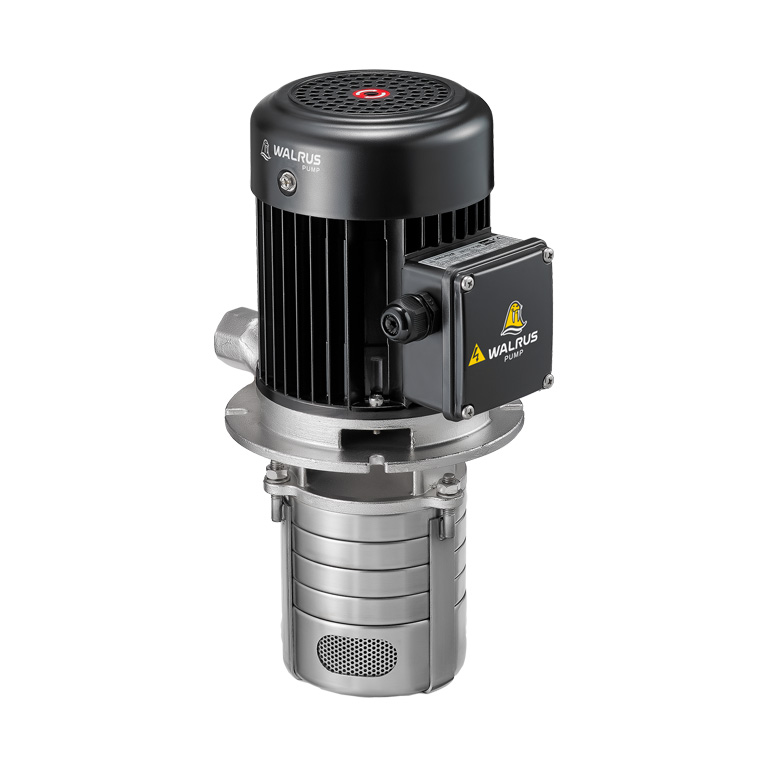

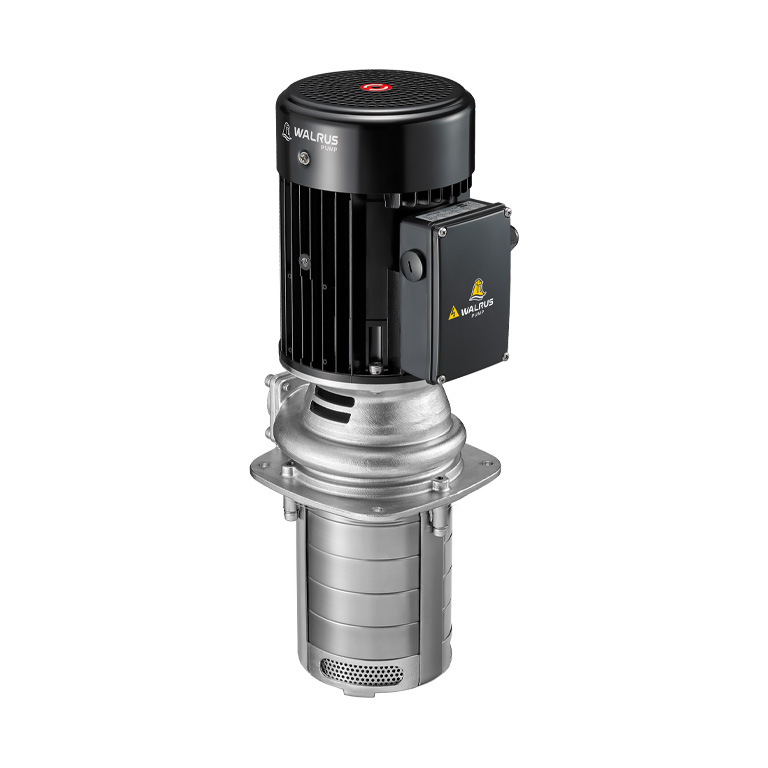

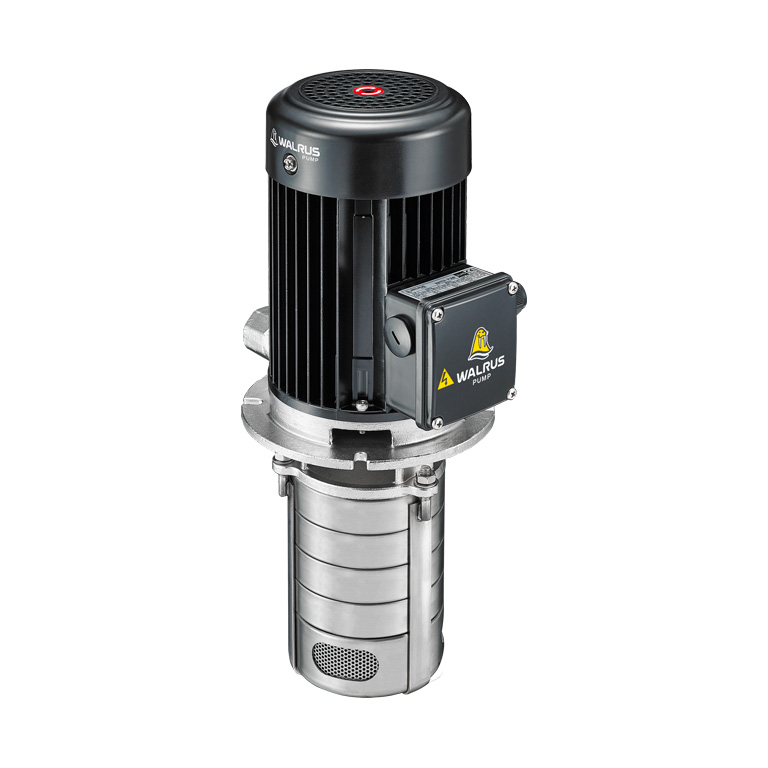

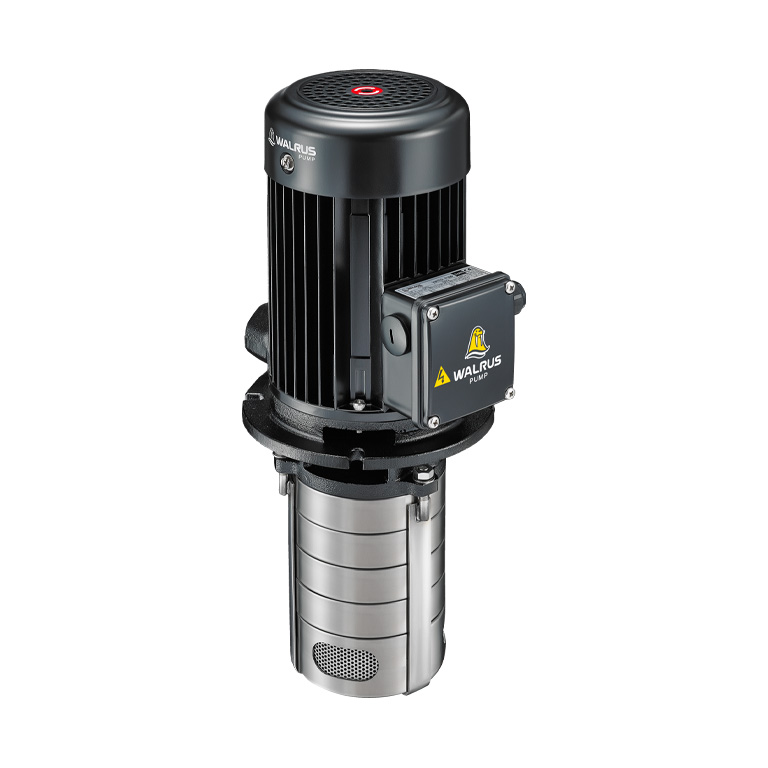

TPHK Series Vertical Multistage Centrifugal Pump

Model No.	List Price
TPHK2T4-4	請聯絡各區經銷商
TPHK2T4-4S	請聯絡各區經銷商
TPHK4T4-4	請聯絡各區經銷商
TPHK4T4-4S	請聯絡各區經銷商
TPHK8T4-2E	請聯絡各區經銷商
TPHK12T6-2	請聯絡各區經銷商
TPHK12T6-2S	請聯絡各區經銷商

Product Features

Product Features
Product Specifications

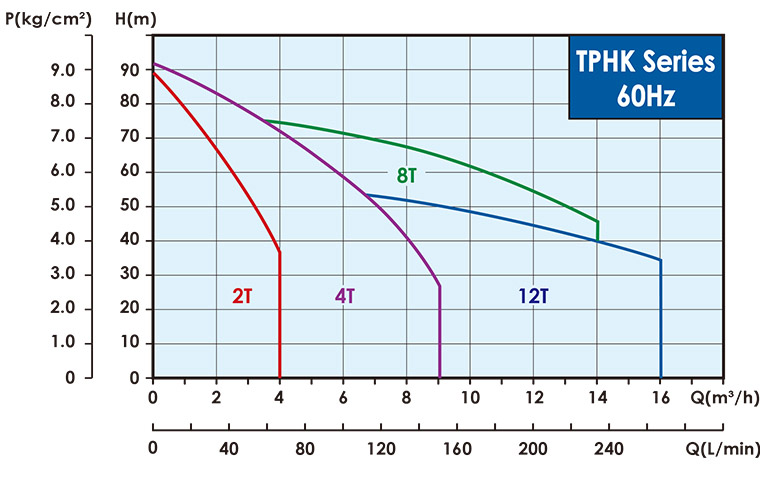

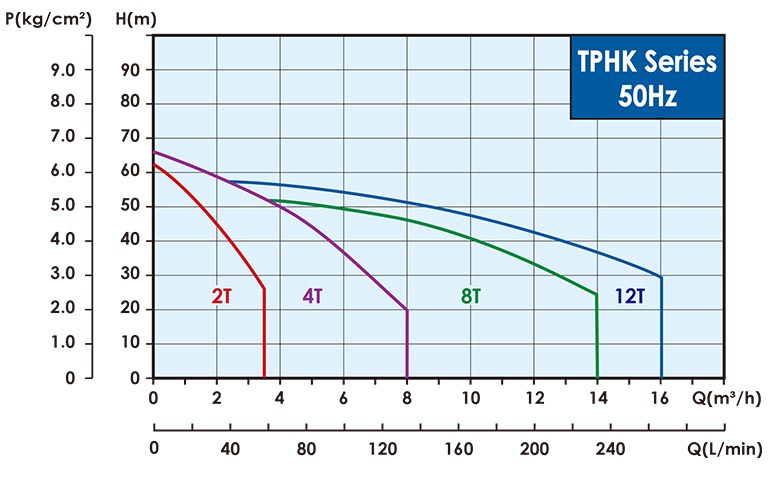

Performance Curve

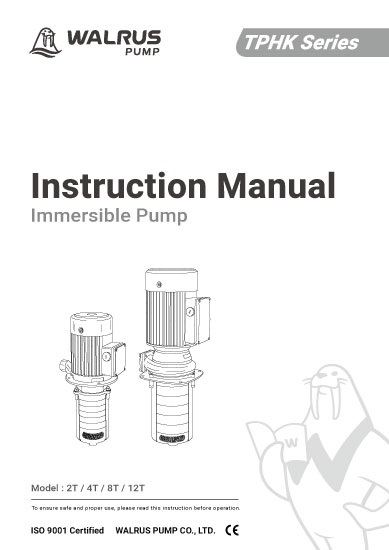

Download Center

Application

The WALRUS TPHK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools, to carry fluids such as water, coolant, light oil and other clean, non aggressive matters.

Pump Construction

Immersible vertical multistage centrifugal pump, co-axial pump/motor design, impellers mounted on extended motor shaft. Main working parts made by stainless steel

Motor

Nominal Speed: 2900 / 3500 rpm

Frequency: 50 / 60 Hz

Voltage: 220V/380V

Enclosure Class: IP54

Insulation Class: F.

Operating Condition

Ambient Temperature: Max. +40°C

Liquid Temperature Range: +0°C ~ +90°C

Operating Pressure: Max. 10 kg/cm²

Submerged depth: Min. 65mm

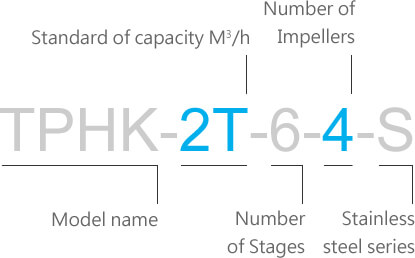

Model Code

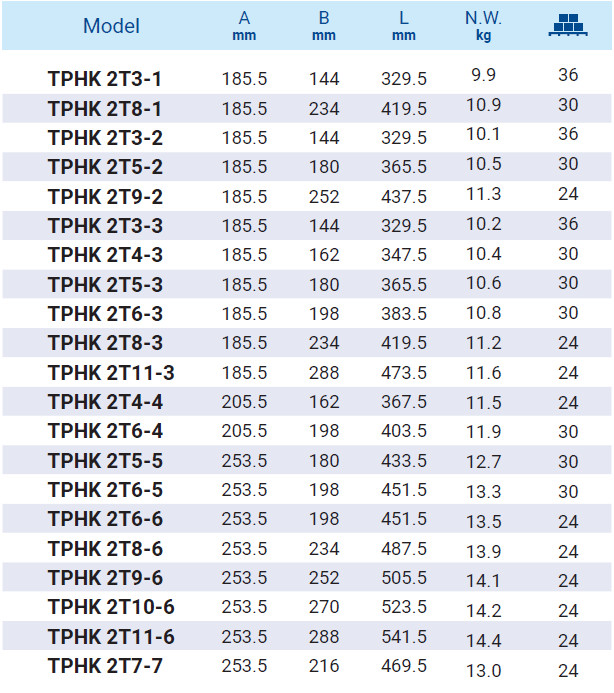

TPHK 2T

Compare Products

Type
TPHK 2T3-1
TPHK 2T3-2
TPHK 2T3-3

Type	Phase (Ø)	Voltage code	Cycle (Hz)	Volts (V)	Output Power (kW)	Ampere I 1/1 (A)	S.F.	Ampere I max (A)
TPHK 2T3-1	3	A3V	5060	200-240/342-415200-255/342-480	0.37	1.8-2.0/1.1-1.21.8-1.7/1.0-1.0	1.11.5	2.0-2.1/1.1-1.22.3-2.1/1.3-1.2
TPHK 2T3-2	3	A3Z	5060	200-240/342-415200-255/342-480	0.37	1.8-2.0/1.1-1.21.8-1.7/1.0-1.0	1.11.5	2.0-2.1/1.1-1.22.3-2.1/1.3-1.2
TPHK 2T3-3	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	0.37	1.8-2.0/1.1-1.21.8-1.7/1.0-1.0	1.11.5	2.0-2.1/1.1-1.22.3-2.1/1.3-1.2

TPHK 2T

Compare Products

Type
TPHK 2T4-4
TPHK 2T5-5
TPHK 2T6-6
TPHK 2T7-7

Type	Phase (Ø)	Voltage code	Cycle (Hz)	Volts (V)	Input (kW)	Ampere (A)	Output Power (kW)
TPHK 2T4-4	3	A3Z	5060	200-255/380-440200-255/380-480	0.620.91	2.2-2.9/1.4-1.73.0-2.9/1.7-1.7	0.420.62
TPHK 2T5-5	3	A3Z	5060	200-255/380-440200-255/380-480	0.701.06	2.4-3.0/1.4-1.63.3-3.0/1.8-1.8	0.480.72
TPHK 2T6-6	3	A3Z	5060	200-255/380-440200-255/380-480	0.851.29	3.1-3.6/1.8-2.14.0-3.6/2.4-2.4	0.580.88
TPHK 2T7-7	3	A3U	5060	200-240/380-415200-240/380-440	1.321.80	4.6-6.7/2.9-3.75.6-5.4/3.2-3.2	0.901.23

TPHK 4T

Compare Products

Type
TPHK 4T2-1

Type	Phase (Ø)	Voltage code	Cycle (Hz)	Volts (V)	Output Power (kW)	Ampere I 1/1 (A)	S.F.	Ampere I max (A)
TPHK 4T2-1	3	A3V	5060	200-240/342-415200-255/342-480	0.37	1.8-2.0/1.1-1.21.8-1.7/1.0-1.0	1.11.5	2.0-2.1/1.1-1.22.3-2.1/1.3-1.2

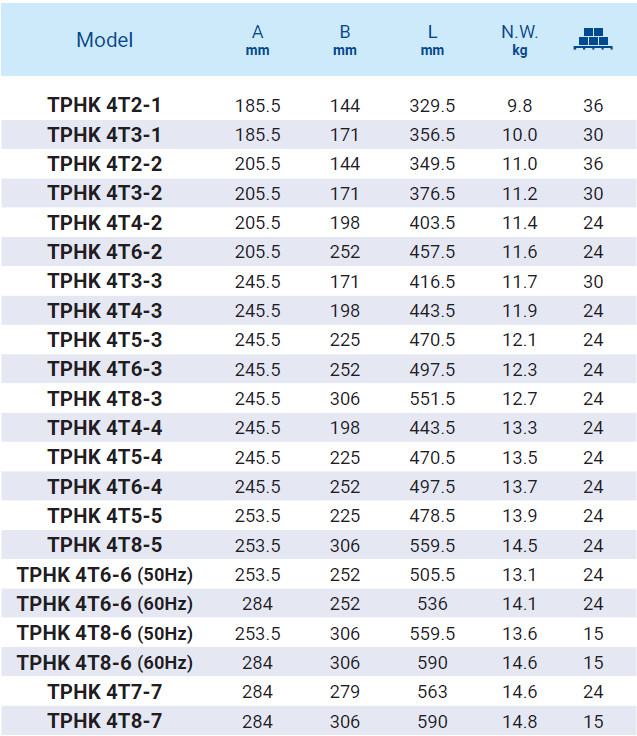

TPHK 4T

Compare Products

Type
TPHK 4T2-2
TPHK 4T3-3
TPHK 4T4-4
TPHK 4T5-5
TPHK 4T6-6
TPHK 4T7-7

Type	Phase (Ø)	Voltage code	Cycle (Hz)	Volts (V)	Input (kW)	Ampere (A)	Output Power (kW)
TPHK 4T2-2	3	A3Z	5060	200-255/380-440200-255/380-480	0.650.96	2.2-2.9/1.4-1.73.0-2.7/1.7-1.7	0.440.65
TPHK 4T3-3	3	A3Z	5060	200-255/380-440200-255/380-480	0.851.29	3.1-3.6/1.8-2.14.0-3.6/2.4-2.4	0.580.88
TPHK 4T4-4	3	A3U	5060	200-240/380-415200-240/380-440	1.081.62	3.4-3.5/2.0-2.04.0-5.0/2.9-2.9	0.741.10
TPHK 4T5-5	3	A3U	5060	200-240/380-415200-240/380-440	1.442.10	0.981.43	4.9-6.8/3.0-3.86.2-6.0/3.5-3.5
TPHK 4T6-6	3	A3U	5060	200-240/380-415200-240/380-440	1.742.40	6.3-9.9/4.2-5.57.7-7.6/4.5-4.5	1.191.64
TPHK 4T7-7	3	A3U	5060	200-240/380-415200-240/380-440	2.142.80	6.9-10.3/4.5-5.88.7-8.4/4.9-4.9	1.461.91

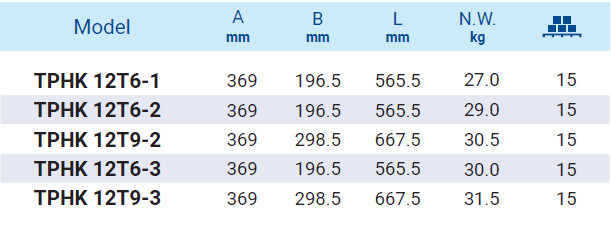

TPHK 12T

Compare Products

Type
TPHK 12T6-1
TPHK 12T6-2
TPHK 12T6-3

Type	Phase (Ø)	Voltage code	Cycle (Hz)	Volts (V)	Input (kW)	Ampere (A)	Output Power (kW)
TPHK 12T6-1	3	A3Z	5060	200-255 / 380-440200-255 / 380-480	3.124.15	2.2-2.9/1.4-1.73.0-2.7/1.7-1.7	0.951.36
TPHK 12T6-2	3	A3U	5060	200-255/380-440200-255/380-480	3.124.15	3.1-3.6/1.8-2.14.0-3.6/2.4-2.4	2.132.83
TPHK 12T6-3	3	53Q	50	200-240 / 380-440	3.83	11.6-11.5 / 6.5-7.2	2.61
