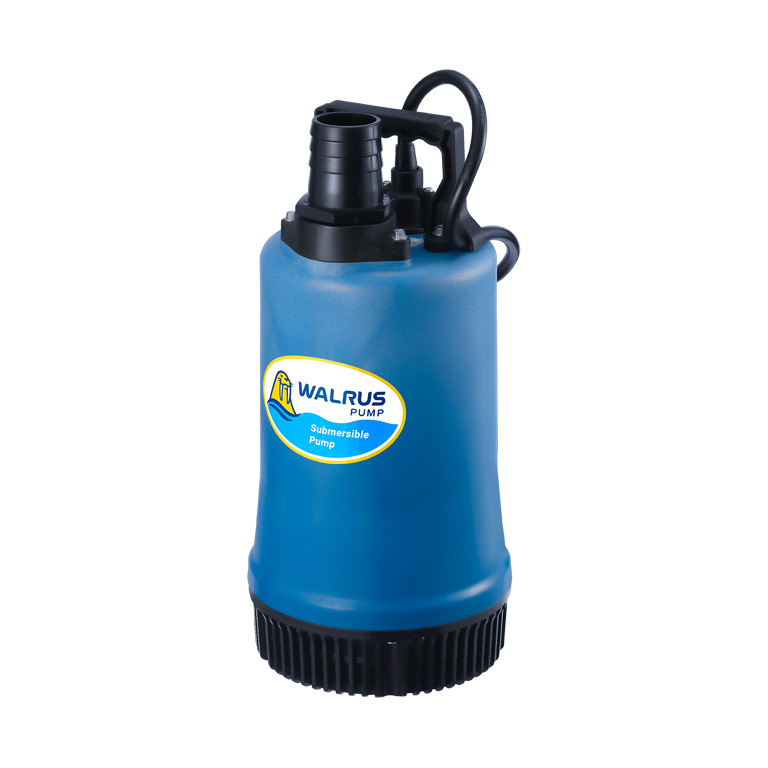

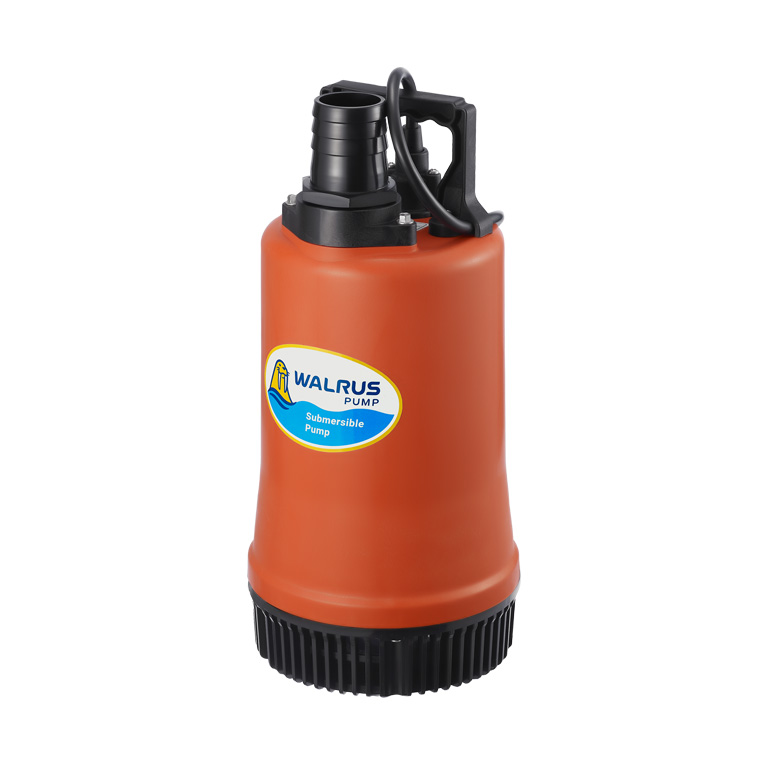

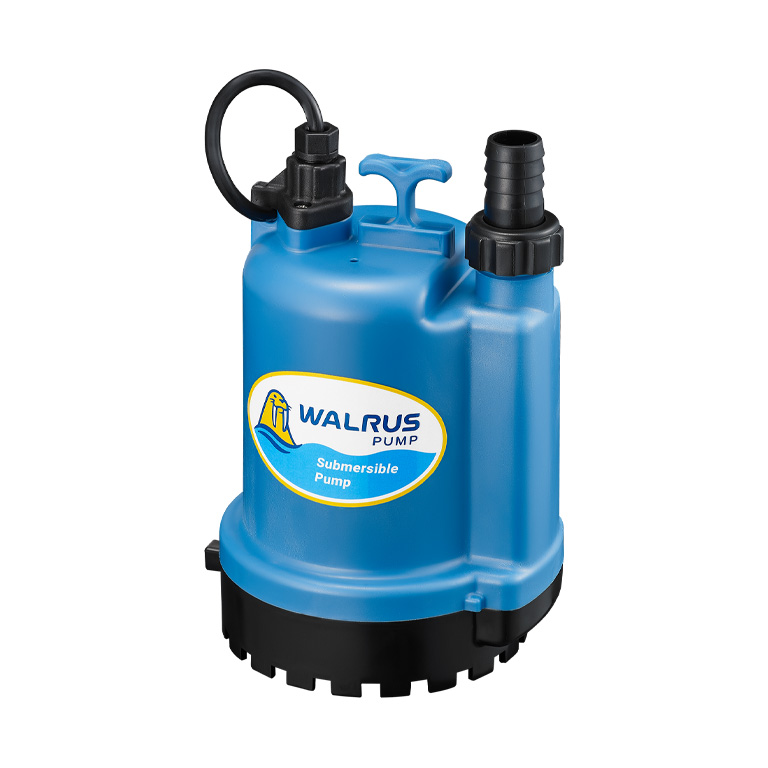

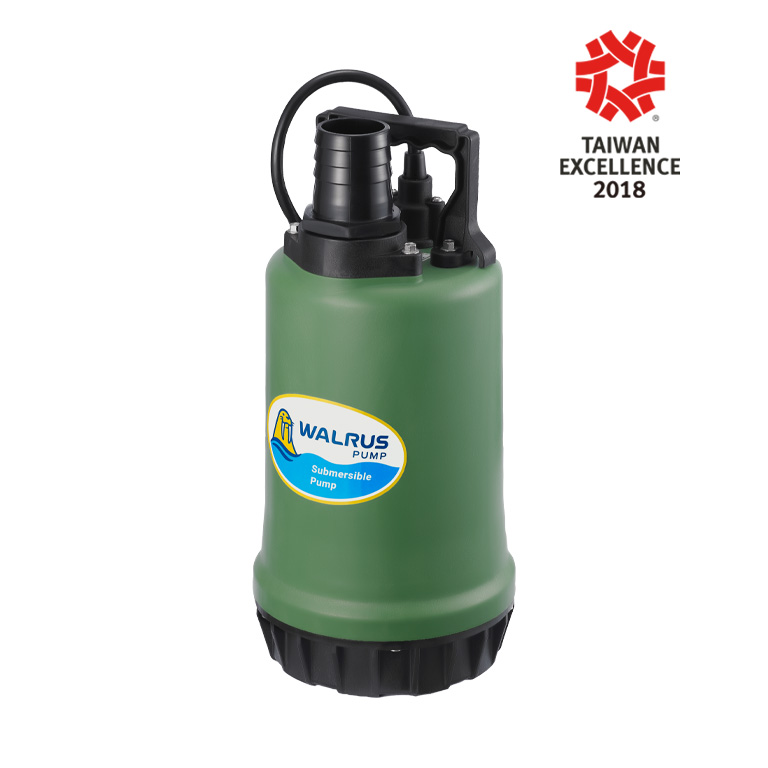

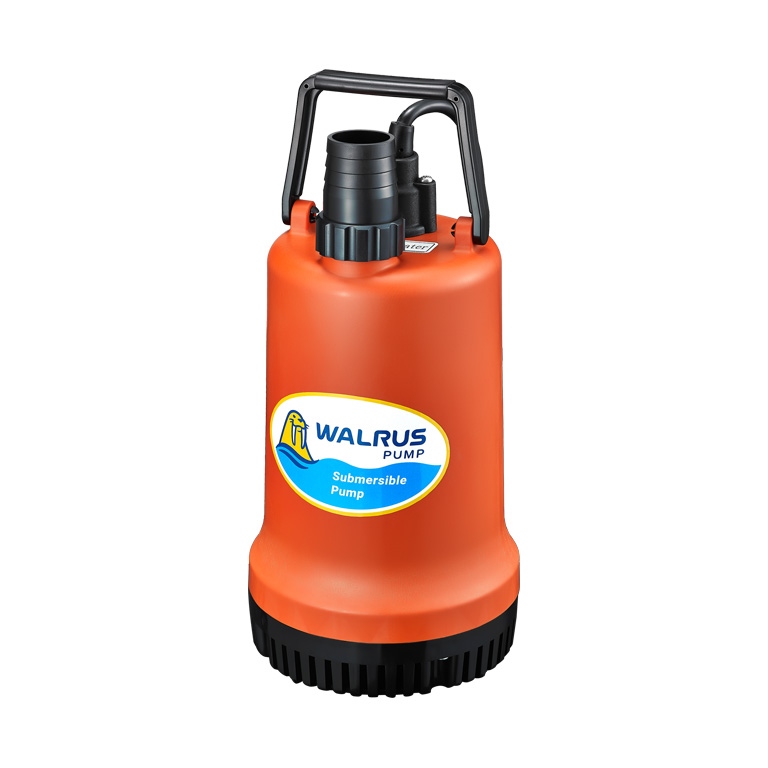

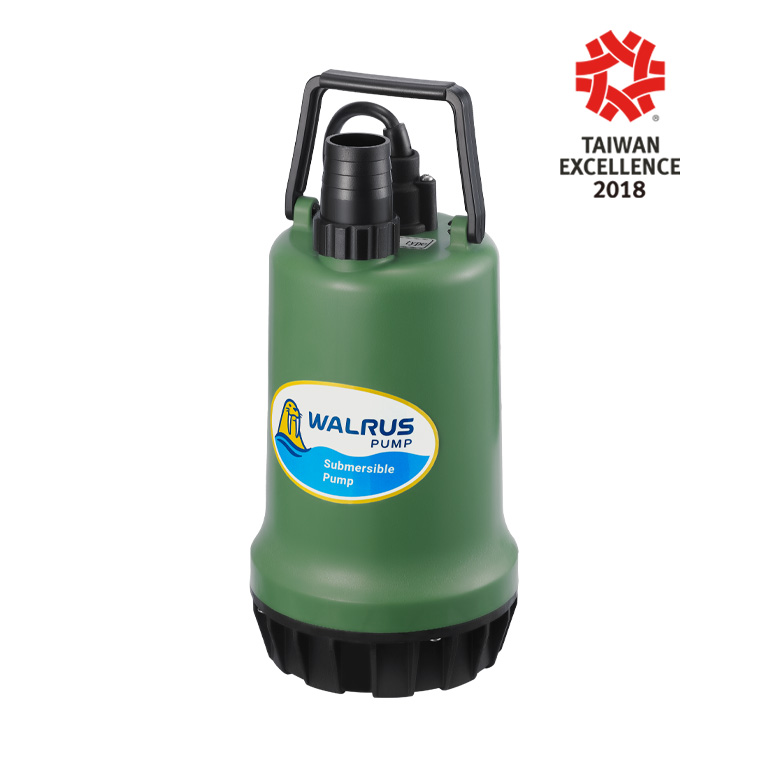

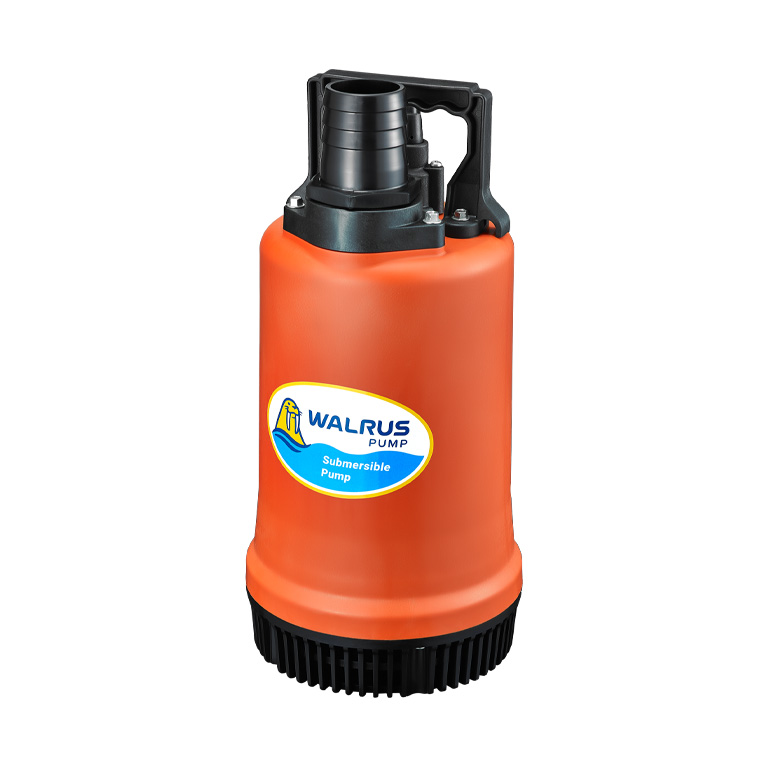

PW-A Series Submersible pump

Model No.	List Price
PW100A	請聯絡各區經銷商
PW100AC	請聯絡各區經銷商
PW100AD	請聯絡各區經銷商
PW100AF	請聯絡各區經銷商
PW100AR	請聯絡各區經銷商
PW100ARC	請聯絡各區經銷商
PW100ARF	請聯絡各區經銷商
PW250A	請聯絡各區經銷商
PW250AD	請聯絡各區經銷商
PW250AF	請聯絡各區經銷商
PW250E	請聯絡各區經銷商
PW250EC	請聯絡各區經銷商
PW400A	請聯絡各區經銷商
PW400AD	請聯絡各區經銷商
PW400AF	請聯絡各區經銷商
PW400AR	請聯絡各區經銷商
PW400ARF	請聯絡各區經銷商
PW800A	請聯絡各區經銷商
PW800AR	請聯絡各區經銷商

Product Features

Product Features
Product Specifications
Performance Curve
Download Center

Product Feature

To be used to circulate water in garden ponds

To be applicable to the sprinkler for vegetations of parks.

Watering in the garden and washing car.

To drain the accumulated water for basement of residence.

To drain the ground water.

To drain accumulated water for civil and architecture engineering.

R: Available to used in sea fish breeding.

F: Equipped with float ball level switch.

C: Equipped With level regulator.

D: Low suction capability：1 mm

Characteristic

Submersible pumps for clean water.

Corrosion-resistant and compact.

Built-in capacitor.

Supplied with power cable with plug

Motor with thermal overload protection

Suitable for cleaning washing towers and other confined spaces pumping use.

Specifications

Power supply: single-phase 50 or 60 Hz

Power: 100W to 800W

Insulation class: B

Protection: IP68

Length of cable: 4 or 5 m 10 m (Optional)

Delivery: up to 440 L/min

Head: up to 14 m

Temperature of pumped liquid: 4°C to +35°C

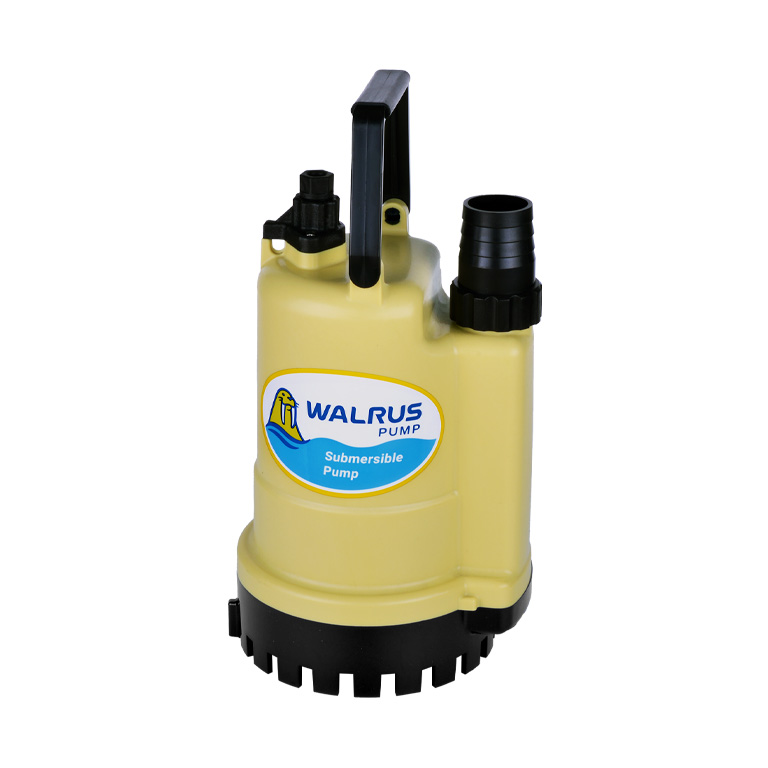

Low suction Pump

Float ball level switch

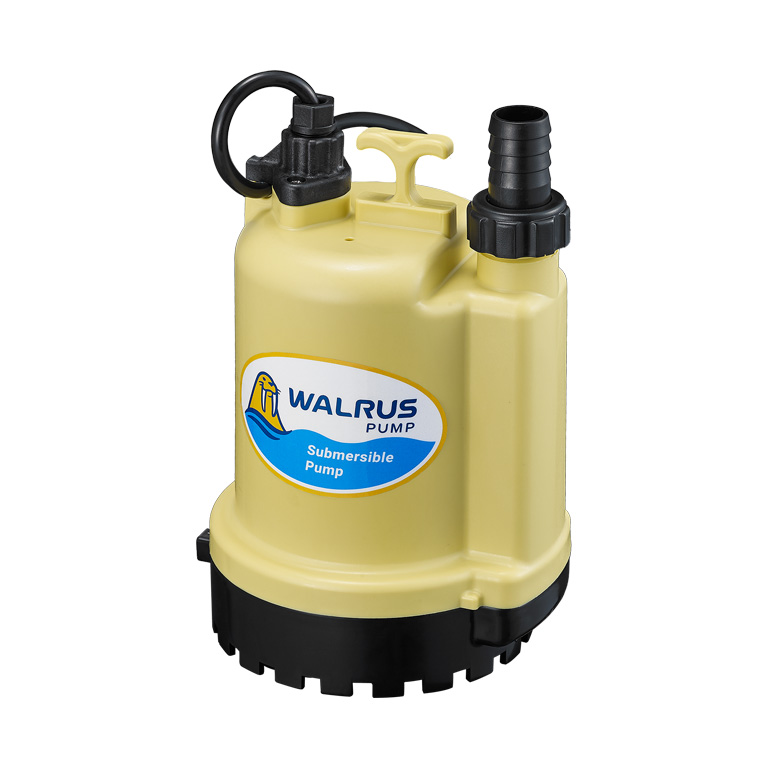

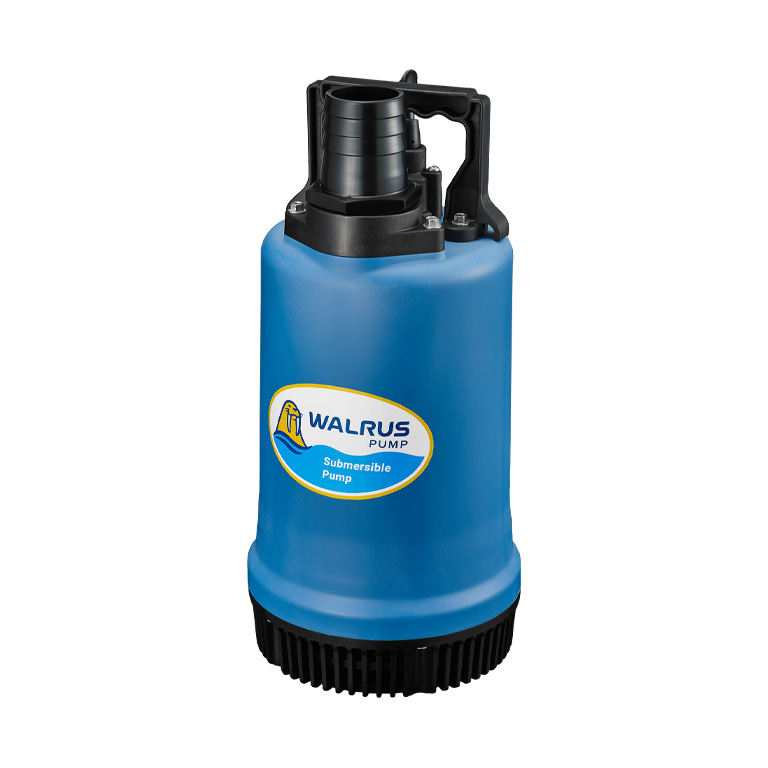

General

Compare Products

Type
PW100A
PW250A
PW400A
PW800A

Type	Power (W)	Cycle (Hz)	Volts (V)	Ampere (A)	Outlet (in.)	Maximum Head (M)	Maximum Capacity (L/min)	Dimensions L x W x H (mm)	Cable Wire C x mm² x m	N.W. (kg)	G.W. (kg)	Maximum Pallet Amount
PW100A	100	506060	220~240110220	1.02.01.0	1"	6.5	80	155 x 140 x 241	3 x 0.75 x 3	4.2	4.5	72
PW250A	250	506060	220~240110220	2.04.02.0	1½"	9.0	160	164 x 164 x 350	3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5	5.1	5.6	32
PW400A	400	506060	220~240110220	3.57.03.5	2"	10	260	183 x 183 x 382	3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5	8.0	8.5	50
PW800A	800	506060	220~240110220	6.813.46.5	2"	14	440	193 x 193 x 412	3 x 1.5 x 53 x 2.0 x 53 x 2.0 x 5	10.5	11	50

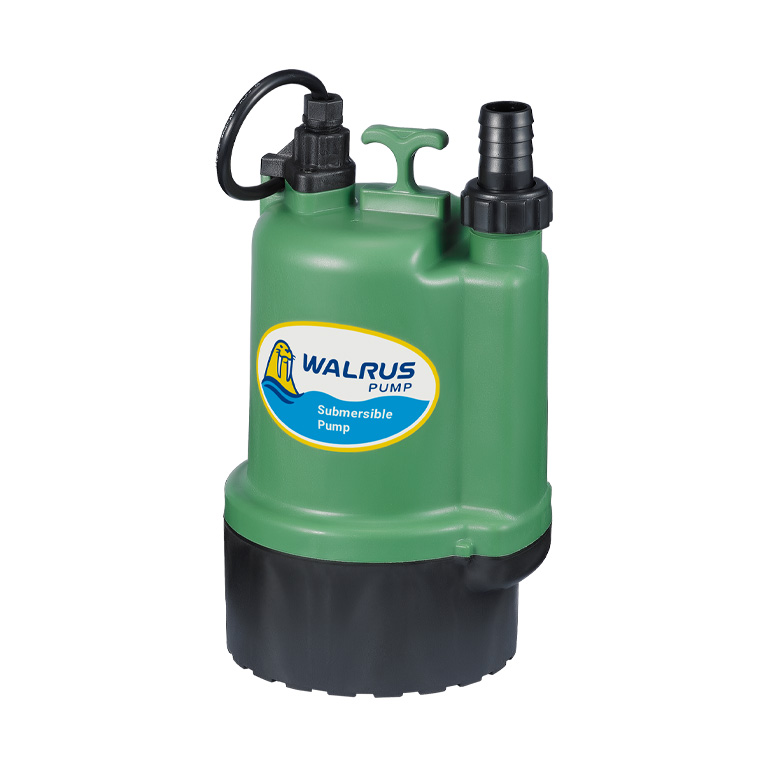

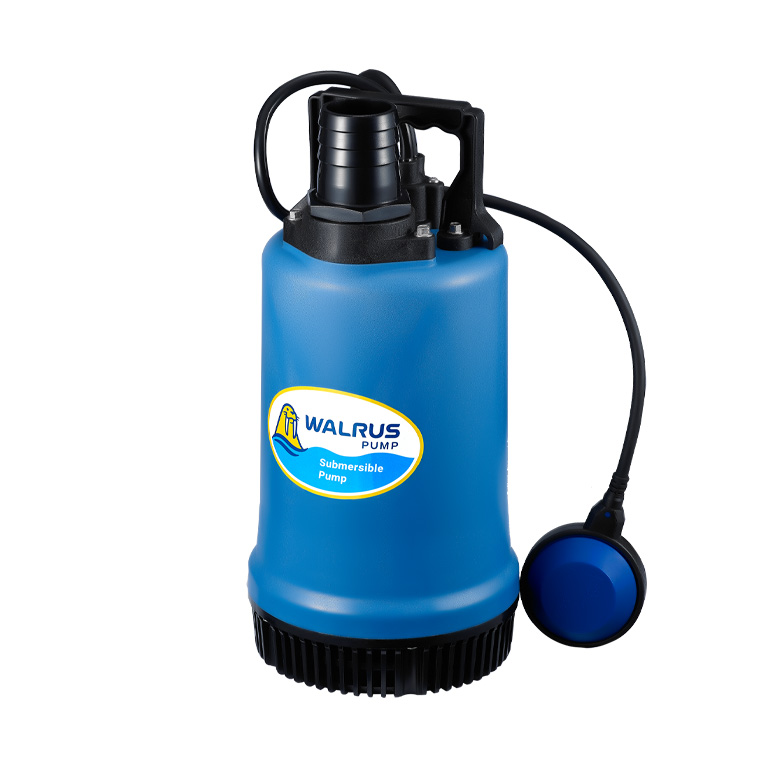

Sea water pump

Compare Products

Type
PW100AR
PW400AR
PW800AR

Type	Power (W)	Cycle (Hz)	Volts (V)	Ampere (A)	Outlet (in.)	Maximum Head (M)	Maximum Capacity (L/min)	Dimensions L x W x H (mm)	Cable Wire C x mm² x m	N.W. (kg)	G.W. (kg)	Maximum Pallet Amount
PW100AR	100	506060	220-240110220	1.02.01.0	1"	6.5	80	155 x 140 x 241	3 x 0.75 x 3	4.2	4.5	72
PW400AR	400	506060	220-240110220	3.57.03.5	2"	10	260	183 x 183 x 382	3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5	8.3	8.8	50
PW800AR	800	506060	220-240110220	6.813.46.5	2"	14	440	193 x 193 x 412	3 x 1.5 x 53 x 2.0 x 53 x 2.0 x 5	10.5	11.0	50

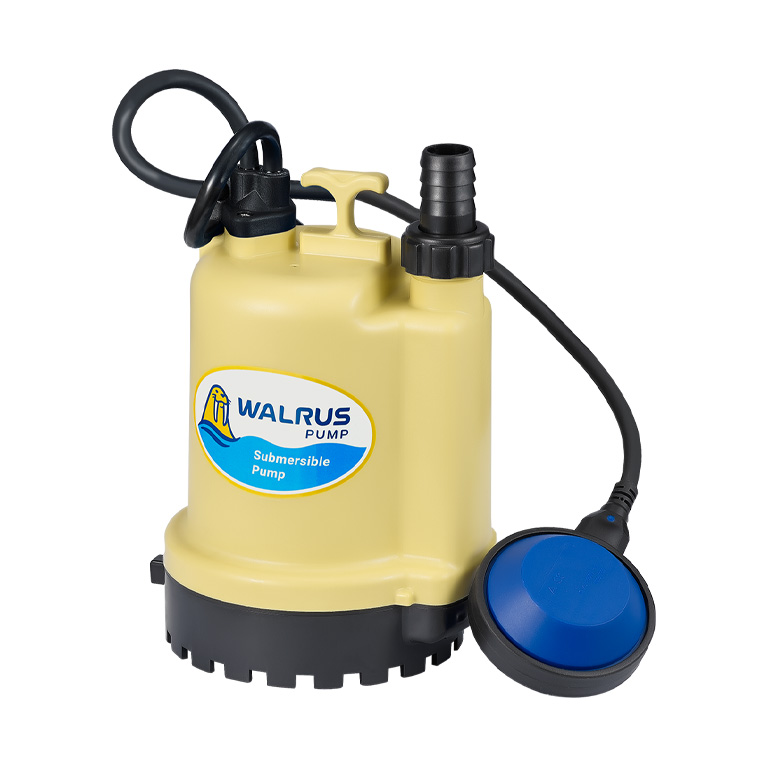

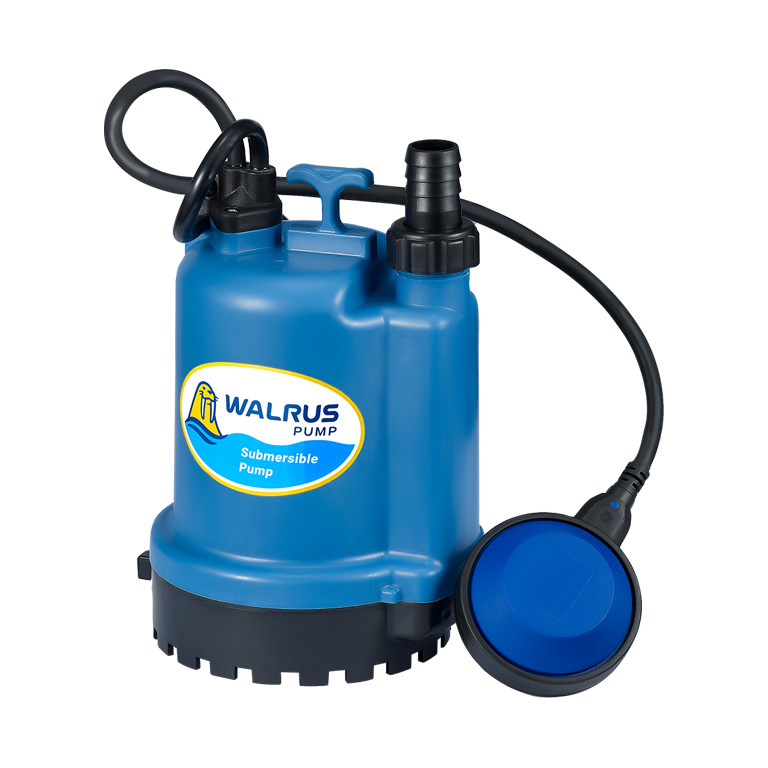

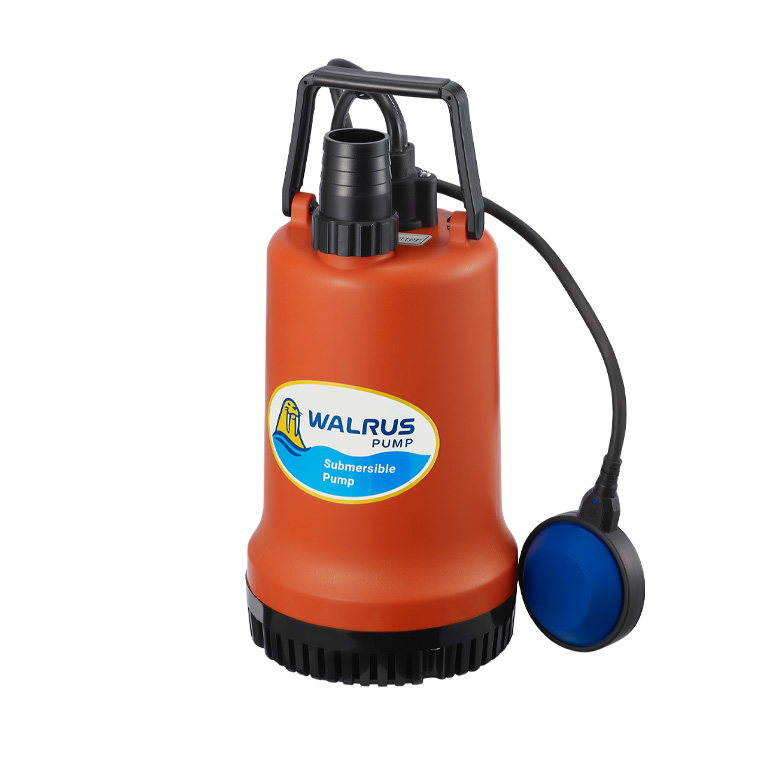

Pump with float ball level switch

Compare Products

Type
PW100AF PW100ARF
PW250AF
PW400AF PW400ARF

Type	Power (W)	Cycle (Hz)	Volts (V)	Ampere (A)	Outlet (in.)	Maximum Head (M)	Maximum Capacity (L/min)	Dimensions L x W x H (mm)	Cable Wire C x mm² x m	N.W. (kg)	G.W. (kg)	Maximum Pallet Amount
PW100AF PW100ARF	100	506060	220-240110220	1.02.01.0	1"	6.5	80	155 x 140 x 241	3 x 1.5 x 43 x 0.75 x 43 x 0.75 x 4	4.3	4.6	48
PW250AF	250	506060	220-240110220	2.04.02.0	1½"	9.0	160	164 x 164 x 350	3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5	5.3	5.8	32
PW400AF PW400ARF	400	506060	220-240110220	3.57.03.5	2"	10	260	183 x 183 x 382	3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5	8.4	8.8	50

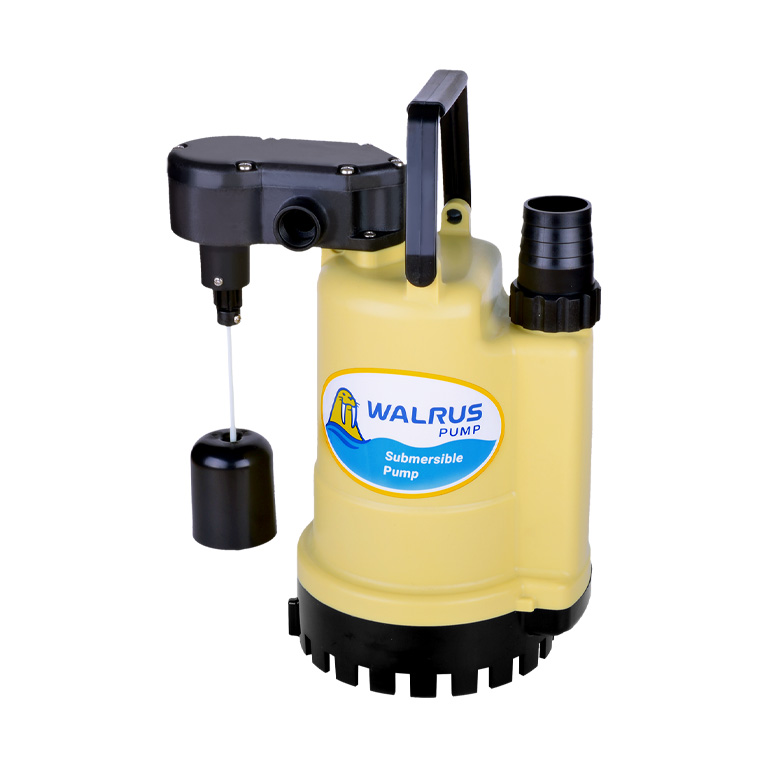

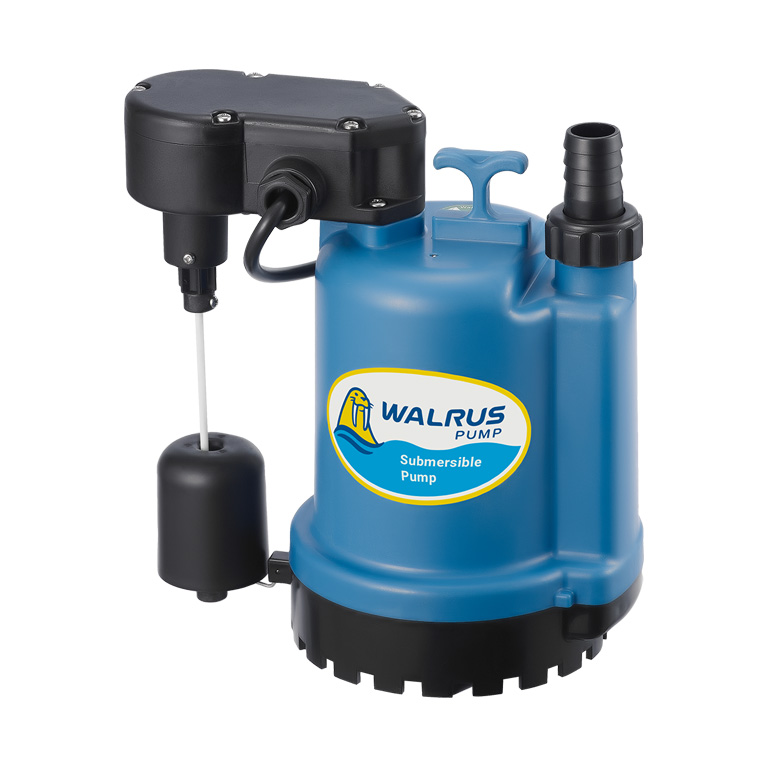

Pump with level regulator

Compare Products

Type
PW100AC
PW100ARC

Type	Power (W)	Cycle (Hz)	Volts (V)	Ampere (A)	Outlet (in.)	Maximum Head (M)	Maximum Capacity (L/min)	Dimensions L x W x H (mm)	Cable Wire C x mm² x m	N.W. (kg)	G.W. (kg)	Maximum Pallet Amount
PW100AC	100	5060	220-240110/220	1.02.0/1.0	1"	6.5	80	227 x 140 x 243	3 x 0.75 x 3	4.5	4.8	48
PW100ARC	100	5060	220-240110/220	1.02.0/1.0	1"	6.5	80	227 x 140 x 243	3 x 0.75 x 3	4.5	4.8	48

Low Suction Pump (Drainage to 1mm from floor)

Compare Productsp>

Type
PW100AD
PW250AD
PW400AD

Type	Power (W)	Cycle (Hz)	Volts (V)	Ampere (A)	Outlet (in.)	Nominal Set Head (M)	Maximum Capacity (L/min)	Dimensions L x W x H (mm)	Cable Wire C x mm² x m	N.W. (kg)	G.W. (kg)	Maximum Pallet Amount
PW100AD	100	506060	220-240110220	1.02.01.0	1"	6.5	708080	164 x 164 x 270	3 x 1.5 x 3	4.5	4.9	72
PW250AD	250	506060	220-240110220	2.04.02.0	1½"	9.0	120	164 x 164 x 350	3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5	6.0	6.4	32
PW400AD	400	506060	220-240110220	3.57.03.5	2"	10	130	183 x 183 x 384	3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5	8.4	8.9	50

i.Catalog

Catalog

PW-A Series Submersible pump

Updated on 2024/04/16

873KB

ii.Instruction Manual

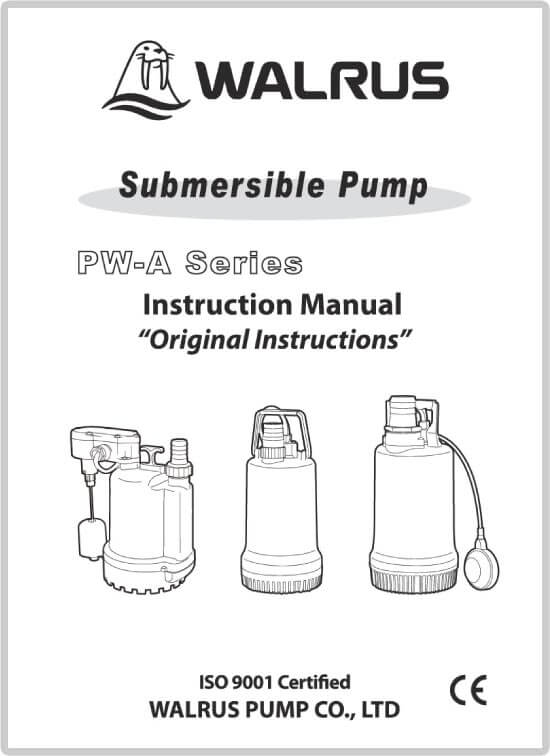

Instruction Manual
